Expansion Memory (ZM-4EM)
About 900K bytes (1.2 M byte if 32 dot font is not in use) inside the flash memory that has been installed in
the main body of ZM-52/72/82 series are used as the panel data memory.
If you install ZM-2EM/4EM to the main body of ZM-52/72/82 series, an additional 2M/4M bytes are installed to
the panel data memory.(ZM-2EM is discontinued production.)
Installation
1. Turn OFF the power.

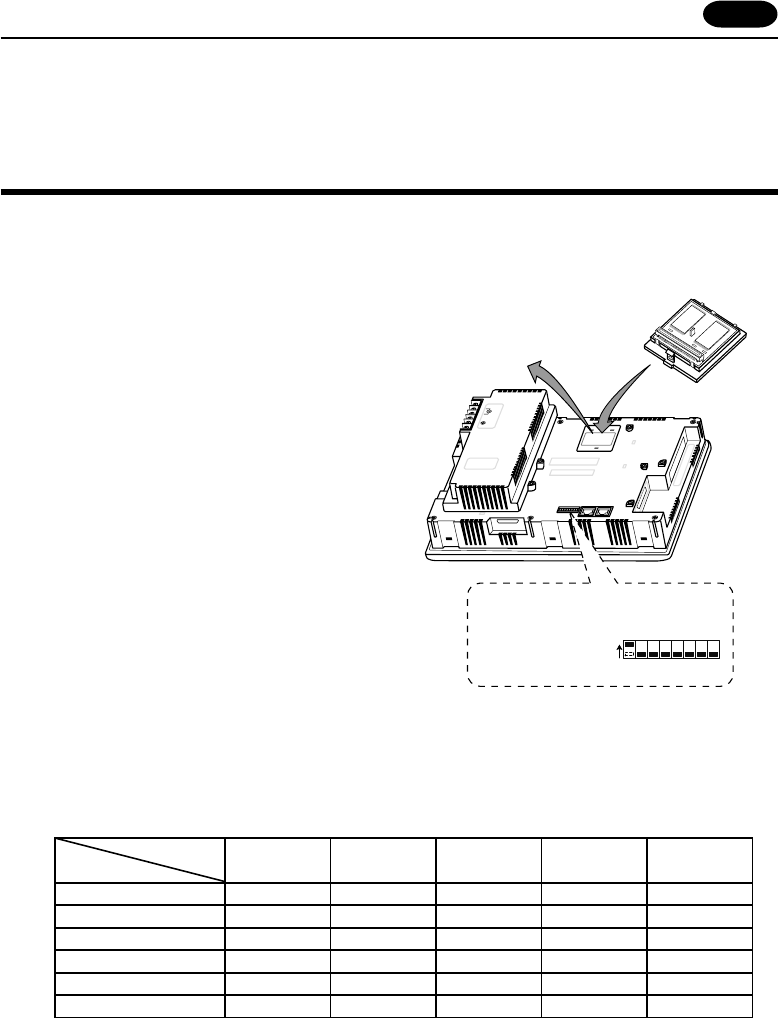

2. Take off the cover as described in the drawing, and
install the additional memory.
3. Turn ON the power.
* When installing the memory, press hard on both ends
of the cassette case.
How to use
Setting
There are two ways of installing the additional
memory.
1) In the case of additional memory #1
The memory volume increases consequently as
the volume of the memory cassette increases, as
in the chart described below.
2) In the case of additional memory #2
Turn on the DIP SW NO.1 which locates on the back side of ZM-52/72/82 series.
Read the data (font, interface driver, panel data) other than the program already installed, to the
additional memory itself. The volumes of panel data are in the chart described below. (*2)
* When turning on the DIPSW NO.1, make sure that you also recharge the power of ZM-52/72/82 series.
On the screen edit software ZM-71SE, set [additional memory] to [2M(additional memory 1)] , [4M(additional
memory 1)] or [2M(additional memory 2)] , [4M(additional memory 2)] by using [other setting (O)/P1] of the
[system setting (A)].
F
R
O
M
0
F
R
O
M
1
CN
1
JP1
V
9
7
-
M
E
M
C
P
0
2
0
0
4
ZM-52/72/82
(2) Install the
expansion memory.
(1) Take off the cover
CN2
MJ1MJ2
CN1
100-
240VAC
L
N
NC
DIP SW
ON
1
23456
7
8
Turn on the DIP SW NO.1
by lifting it up.
In the case of expansion memory #2
ZM-52/72/82
1,179,648
Standard
786,432
1,441,792
1,310,720
1,179,648
1,310,720
Additional
memory 1 + 2M
*1
Additional
memory 1 + 4M
*1
Additional
memory 2 2M
Additional
memory 2 4M
3,260,416
2,867,200
3,522,560
3,391,488
3,260,416
3,391,488
5,357,568
4,964,352
5,619,712
5,488,640
5,357,568
5,488,640
1,703,936
1,179,648
1,835,008
1,703,936
1,703,936
1,835,008
3,801,088
3,276,800
3,932,160
3,801,088
3,801,088
3,932,160
*2 *2
*3
Font
Japanese
Japanese 32
English (Western)
Chinese (Mandarin)
Chinese (Simplified)
Korean
*1
This is the volume of the panel data when adding the memory while turning off the DIP SW NO.1.
*2
This is the volume of the panel data when adding the memory while turning on the DIP SW NO.1.
*3 Japanese 32 matches to the 32 dot font. In the case of multiplying the size of the character, the
character becomes softened as the base is the 32 dot font.
