Mounting Procedure
6
M
J
2
M
J
1
D
C
2
4
V
(
+
)
(-
)
T
B
1
ZM-
**
Fixture
Mounting hole
Mounting hole
Mounting panel
Mounting Procedure

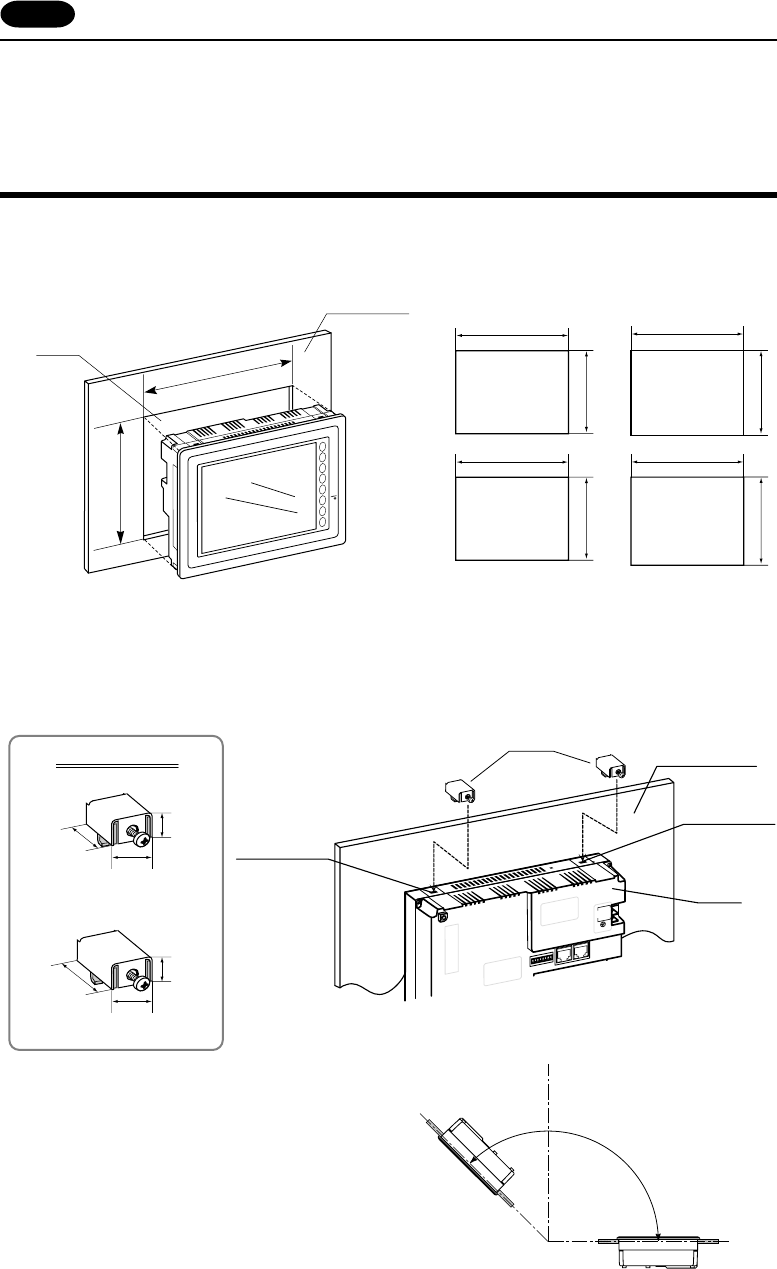

1. Cut out the mounting panel (Max. thick: 3.2 mm) to match the dimensions shown below.
(Note) Although a panel cut size is the same, the positions of the serial connector CN1 on the back face is
not same. See page 1-12.
2. Insert the fixtures attached to ZM-
**
into the mounting holes on ZM-
**
. Tighten them with the locking
screws. - Number of the fixtures: 4 pcs. -Torque : ZM-42/43/52 0.29~0.49N·m, ZM-72/82 0.49~0.686N·m
Mounting Angle
The module (ZM-
**
) shall be installed within the angle
of 0 to 135 degrees as shown below.
Mounting panel
Cut-out
165.5
+0.5
- 0
220.5
+
0
.5
- 0
F
1
F2
F3
F4
F5
F6
F7
SYS
Dimensions of Fixtures
for ZM-42/43 Series/ZM-52D
for ZM-72 Series/ZM-82 Series
17.8
10.5
30.0
(Unit : mm)
17.8
10.5
20.0
135
˚
0˚
135˚
90˚
Display
Display
165.5
220.5
Unit : mm
+0.5
- 0
- 0
+0.5
246.2
313
ZM-82 Series
ZM-52D
216.2
289
+0.5
- 0
- 0
+0.5
ZM-72 Series
131
174
+0.5
- 0
- 0
+0.5
ZM-42 Series
ZM-43 Series
+0.5
- 0
- 0
+0.5
1 Mounting Procedure
(In case of ZM-52D)
