Printer Interface (CN2)
13
When a printer is connected to ZM-
**
via the connector (CN2), it is possible to hard-copy the screen
display of ZM-
**
, the data sheet, or the sampling data.

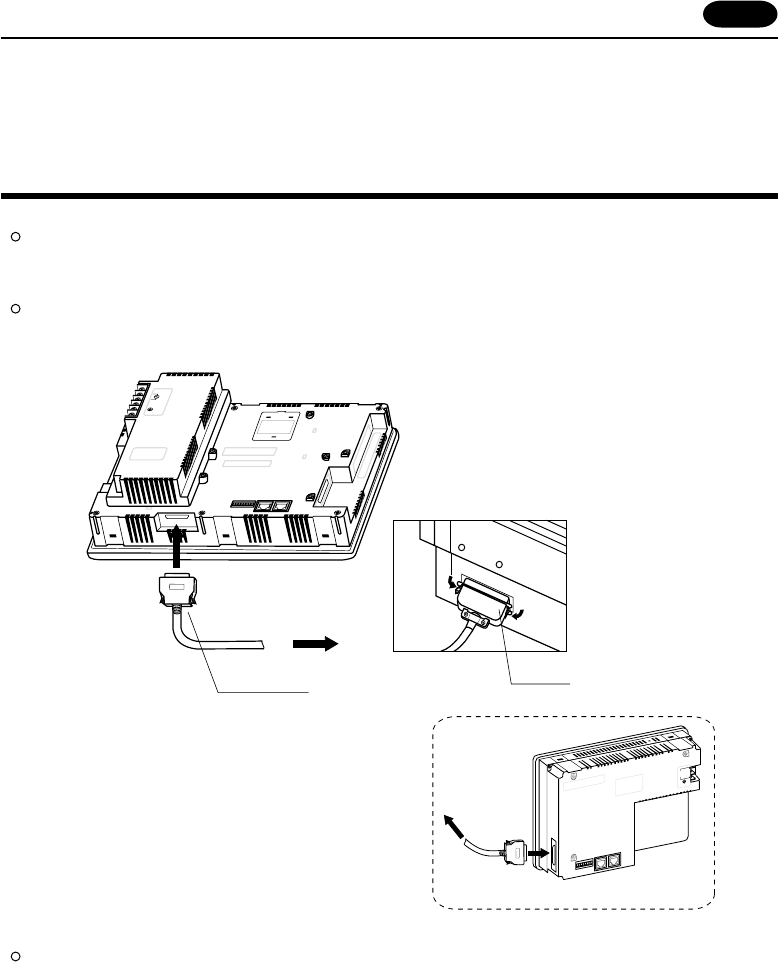

For the connection of the printer and ZM-
**
, apply the printer cable ZM-80PC (sold separately) which
matches the 36-pin parallel interface.
Compatible Printer Models
NEC PC-PR201 series
EPSON Compatibles with ESC/P24-J84, ESC/P-J84, ESC/P super function
HP(HEWLETT PACKARD) PCL Level 3
to Printer
Half pitch 36 pins
Centronics
CN2
MJ1MJ2
C
N
1
100-
240VAC
L
N
NC
1 Printer Interface (CN2)
to Printer
D
C
2
4
V
(
＋
)
(
−
)
TB1
CN2
