Available Memory
Wiring
RS-422
ZM-
**
(CN1)
D-sub 25pin(Male: )
FG
SG
+SD
-SD
+RD
2
PC
D-sub 15pin(Male: )
3
4
RXA
TXA
CTSA
RTSA
5
-RD SG7
7
1
12
13
24
25
10
11
12
13
RXB
TXB
CTSB
RTSB
R
R120Ω 1/2W
Memory Bit Write TYPE Remarks
D (data register) 0
X (input register) 1 XW as word device
Y (output register) 2 YW as word device
R (auxiliary relay) 5 RW as word device
L (link relay) 6 LW as word device
W (link register) 7
F (file register) 8
TN (timer/current value) 9 Read only
CN (counter/current value) 10 Read only
TS (timer/contact) 11 Read only
CS (counter/contact) 12 Read only

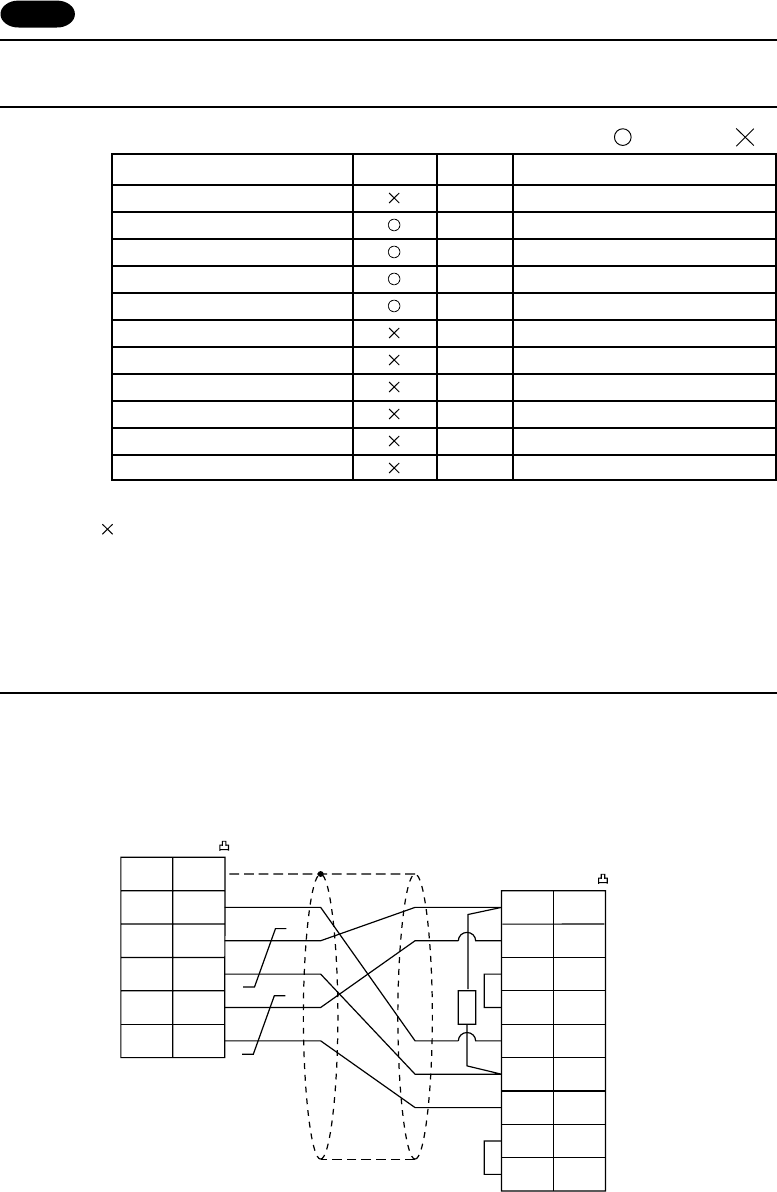

Wiring Diagram 1
The following is a diagram to show the wiring of the cable which connects ZM-
**
to PC.
* Use twist shielded cables.
2 TOSHIBA PC
Set the memory to the extent of the memory range of each PC model. In case of using the
[Bit Write] memory as the bit device of the [Output Action] is [Momentary W], the other
bits will be cleared when the bit memory is output, because the [Bit Write] will be output
by one word (refer to P5-10, reference 14-7 of ZM-71SE Instruction Manual). Use [TYPE]
number to assign indirect memory for macro programs.
Available: Unavailable:
