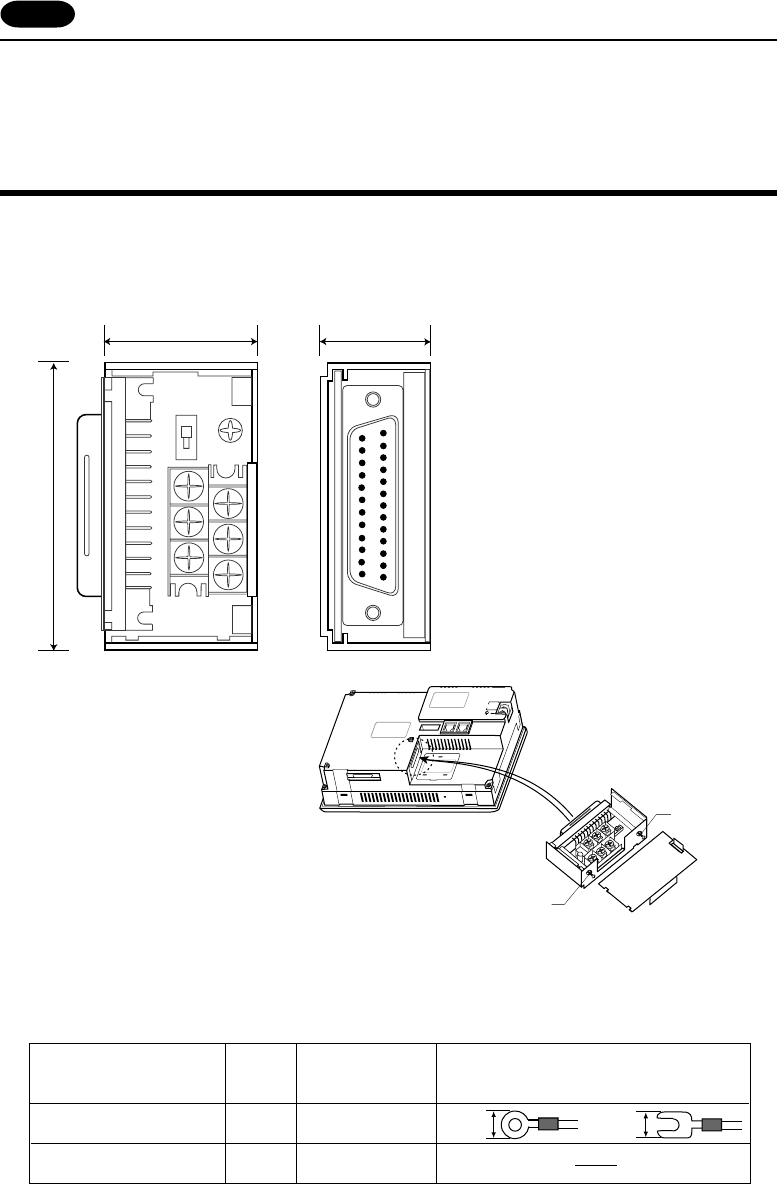

1 Terminal Converter (ZM-1TC)
Terminal Converter (ZM-1TC)
1 8
Use the terminal converter ZM-1TC when connecting the ZM-42/43/52/72/82 series and PC by the RS-422/
485 terminal block.
1. Make sure that the power of ZM-42/
43/52/72/82 series is OFF.
2. Install the ZM-1TC to the serial
connector (CN1) of the ZM-42/43/52/
72/82 series.
3. Settle the ZM-1TC by the module
mounting screw.
Installation
Tighten mounting screws with the following torque.
Tighten terminal screw, module mounting screw
Size
CN2
CN1
MJ2 MJ1
DC24V
（＋）
（−）
TB1
SW
1
CN1
Unit Mounting Screw
Unit Mounting Screw
ZM-1TC (Terminal Converter)
• Never fasten these screws too tightly, otherwise the cover of Control Terminal may be deformed.
Position of screws
I/O, I/F terminal screw
Screw
size
M3
Tighten torque
(N • m)
Pressure connection terminal
(Unit : mm)
0.49
5.9MAX
5.9MAX
Module mounting screw
M2.6
0.1∼0.2
34.7
25
65
