2 - 27

MITSUBISHI PC • 7

(Net 10)

ZM-

can access other CPUs on the NET II(/B) or NET/10 when ZM-

is connected to one of the link

units that the data link system or network system consists of.

Select “Net10” as PC setting when configuring the screen data on the panel editor.

To access other CPU on the NET II (/B) or NET/10 from ZM-

• In case of NET II(/B), only the network which has the CPU with the link unit connected to the ZM-

(e.g.

No. 1) can be accessed.

(Available CPU No.: 0~30)

• In case of NET/10, other networks (No. 2, No. 3) can be accessed in addition to the network No. 1.

(Available CPU No.: 1~30)

To read/write the memories of the CPU(e.g. 1-1 of CPU) which has the link unit to be connected to the

ZM-

Set the CPU No. to “31” on the panel

editor. Response time will be equiva-

lent to the case of 1 : 1 communication.

Please note that response will be

delayed due to the transient transmis-

sion when the CPU No. is set to other

than “31”.

In this case, use [OUT_ENQ] command of the [SYS] to

program the macro. A CPU from a different network

cannot be accessed on the same screen.

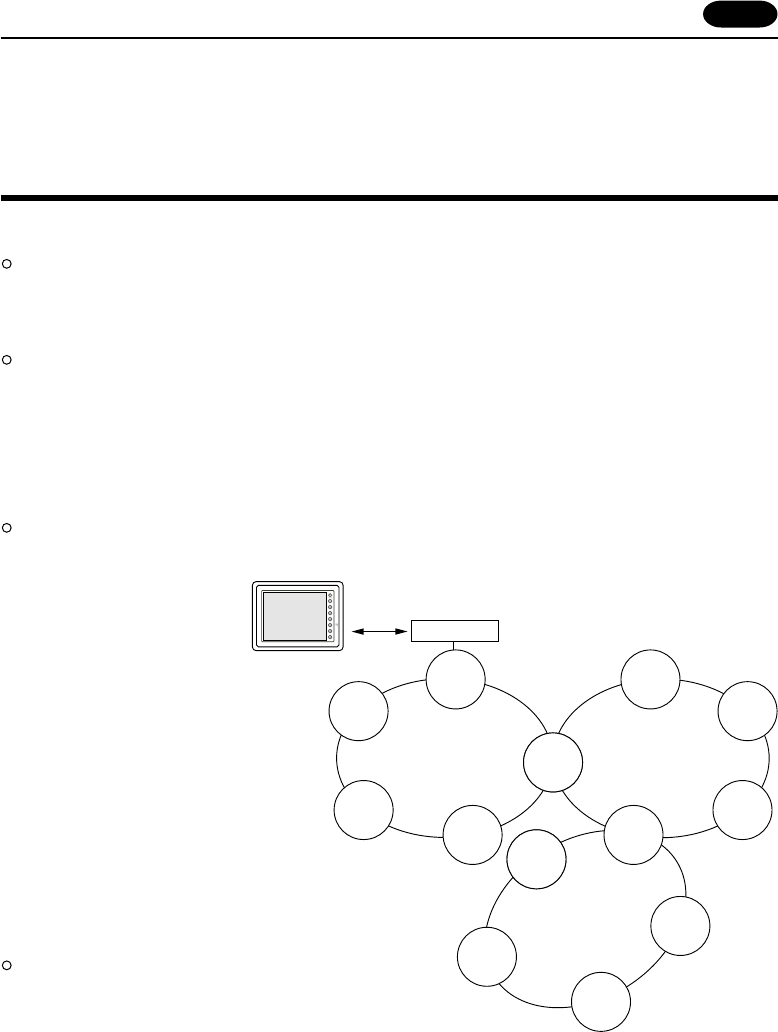

When accessing PCs of other network numbers on NET/

10, specify the network number to be connected with the

screens Open Macro in Panel Editor.

CPU

(1-1)

Link Unit

CPU

(1-5)

CPU

(1-4)

CPU

(1-3)

CPU

(1-2)

(2-2)

CPU

(2-5)

CPU

（2-4）

CPU

(2-1)

CPU

(2-4)

CPU

(3-5)

CPU

(3-4)

CPU

(3-3)

CPU

(3-2)

CPU

(2-3)

(3-1)

ZM-

Network No. 1

Network No. 2

Network No. 3

2 MITSUBISHI PC • 7
