Infrared Turret Dome Camera User ManualProducts: CD600 Series, CD601 Series, CD700 Series CamerasPlease read this manual before installing and using

6www.observint.comSECTION 2: INSTALLATION3. Using the base as a template, mark the location of the four mounting screw holes. Mounting screw holeCam

7Infrared Turret Camera User ManualSECTION 2: INSTALLATION5. Drill mounting screw holes into the mounting surface.a. If the mounting surface is a so

8www.observint.comSECTION 2: INSTALLATIONCable channel in base7. Drill a 3/4" hole through the mounting surface at the center of the base. 3/4&q

9Infrared Turret Camera User ManualSECTION 2: INSTALLATION8. With the camera in the camera housing, route the drop cable through the 3/4" hole u

10www.observint.comSECTION 2: INSTALLATIONReassemble camera

11Infrared Turret Camera User ManualSECTION 2: INSTALLATION12. Attach the BNC video/power cable to the camera cable as required. CAUTIONNotice that

12www.observint.comSECTION 2: INSTALLATION2.4 OSD Setup (CD700 series only)CD700 series cameras include on-screen display (OSD) software for adjustin

13Infrared Turret Camera User ManualSECTION 2: INSTALLATIONOSD MENU OPTIONSOSD SETLENSMANUALAUTOTYPE: DC / VIDEOMODE: CLOSE / AUTO/OPEN SPEED: 0-255SH

14www.observint.comSECTION 2: INSTALLATIONOSD SET (cont.)MOTION DETOFF --ONDETECT SENSE / BLOCK DISP / MONITOR AREA / AREA SEL / TOP / BOTTOM / LEFT

15Infrared Turret Camera User ManualSECTION 3: AIMING THE CAMERASECTION 3 Aiming the Camera1. Connect the video cable from the camera to a test moni

WARNING!Do not use the camera if it is emitting fumes, smoke or a strange odor, or if it seems to function abnormally. Disconnect the power source imm

16www.observint.comSECTION 4: CLEANINGSECTION 4 CleaningClean the camera lens and IR lamp shield with an approved glass cleaning solution and a lint

17Infrared Turret Camera User ManualSECTION 5: SPECIFICATIONSSECTION 5 Specications Model CD600W, CD600B CD601W, CD601BCD601WVF, CD601BVFSensor 1/3

18www.observint.comSECTION 5: SPECIFICATIONSModel CD700W, CD700B CD700WVF, CD700BVFSensor 1/3" SONY Super-HAD CCD II 1/3" SONY Super-HAD CCD

19Infrared Turret Camera User ManualSECTION 6: TROUBLESHOOTINGSECTION 6 TroubleshootingBefore sending the camera for repair, please check below to ma

iiiInfrared Turret Camera User ManualWARNINGS & CAUTIONSCAUTIONTo prevent damage, do not drop the camera or subject it to strong shock or vibrat

ivwww.observint.comTABLE OF CONTENTSTable of ContentsSECTION 1 Features ... 11.1 Camera components ...

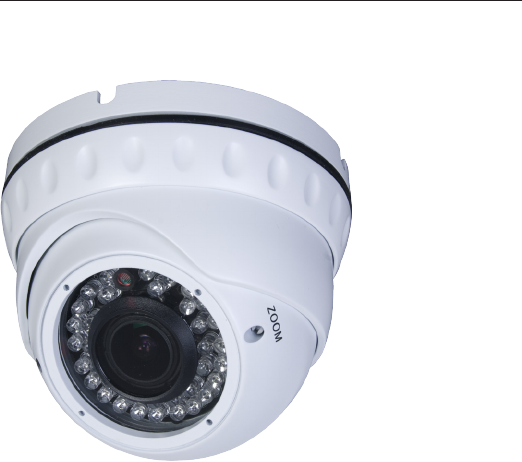

1Infrared Turret Camera User ManualSECTION 1: FEATURESSECTION 1 FeaturesThe CD600, CD601, and CD700 series cameras are weatherproof, vandal resistant

2www.observint.comSECTION 1: FEATURES1.1 Camera componentsDrop CableVideo 75 Ohm12 V dcBaseBezelCamera HousingCamera ModuleZoom Adjust (-VF Models)Ca

3Infrared Turret Camera User ManualSECTION 1: FEATURES1.2 Camera connectionsConnectConnectSingle camera with monitor Multiple camera system with DVR

4www.observint.comSECTION 2: INSTALLATIONSECTION 2 Installation2.1 What’s in the boxThe camera package contains: • Camera assembly• Instruction ma

5Infrared Turret Camera User ManualSECTION 2: INSTALLATION2.3 Installation instructions1. Separate the base from the rest of the camera assembly by
