3. SIGNALS AND WIRING

3 - 14

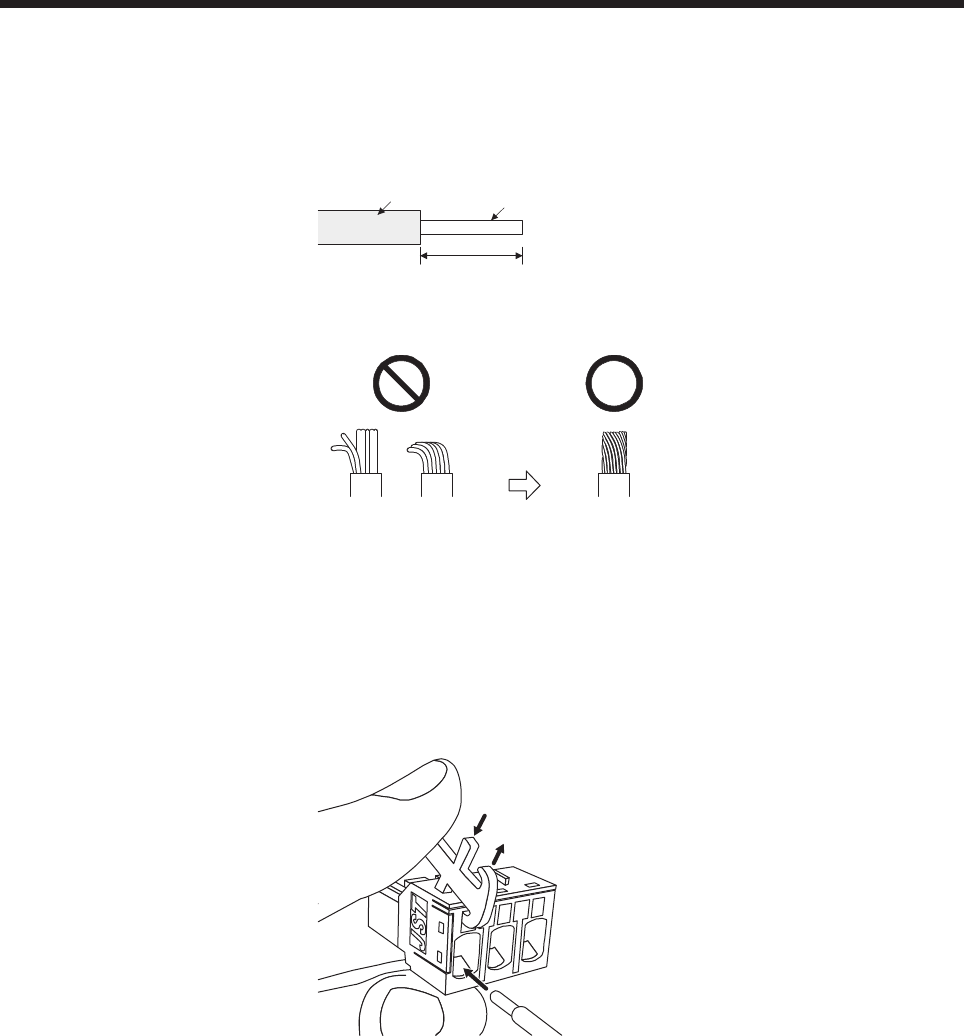

(2) Cable connection procedure

(a) Cable making

Refer to table 3.1 and 3.2 for stripped length of cable insulator. The appropriate stripped length of

cables depends on their type, etc. Set the length considering their status.

Insulato

Core

Stripped length

Twist strands slightly and straighten them as follows.

Loose and bent strands Twist and straighten

the strands.

(b) Inserting wire

Insert the open tool as follows and push down it to open the spring. While the open tool is pushed

down, insert the stripped wire into the wire insertion hole. Check the insertion depth so that the cable

insulator does not get caught by the spring.

Release the open tool to fix the wire. Pull the wire lightly to confirm that the wire is surely connected.

The following shows a connection example of the CNP3 connector for 2 kW and 3.5 kW.

1) Push down the open tool.

3) Release the open tool to fix the wire.

2) Insert the wire.
