1. FUNCTIONS AND CONFIGURATION
1 - 10

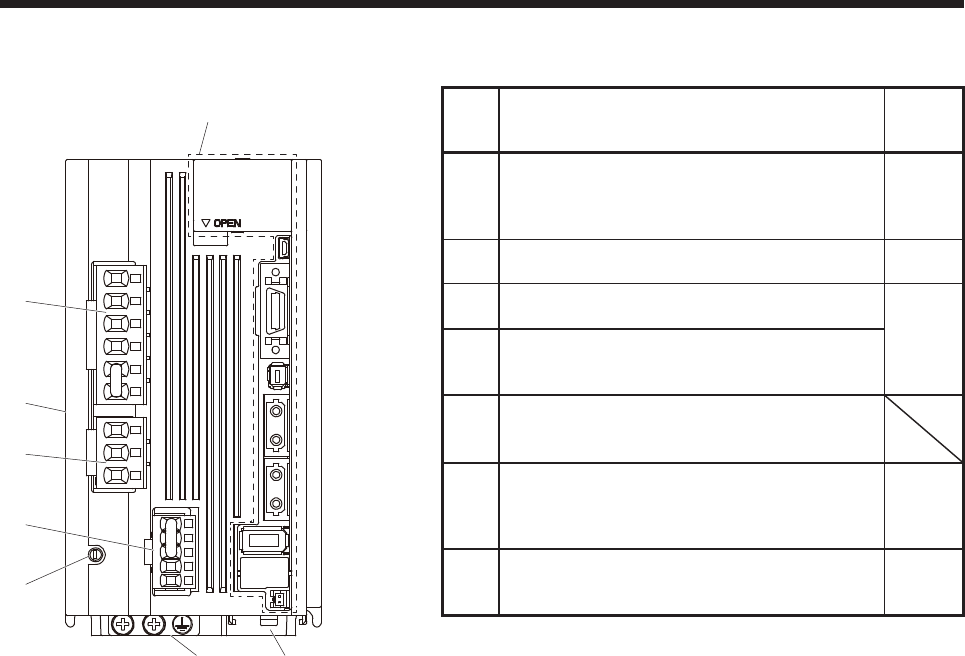

(2) MR-J4-350B
No. Name/Application
Detailed
explanati
on
(1)
Main circuit power supply connector (CNP1)
Connect the input power supply.
Section
3.1
Section
3.3
(2)
Rating plate Section
1.6
(3)
Servo motor power supply connector (CNP3)
Connect the servo motor.
(4)
Control circuit power supply connector (CNP2)
Connect the control circuit power supply or
regenerative option.
Section
3.1
Section
3.3
(5)
Charge lamp
Lit to indicate that the main circuit is charged.
While this lamp is lit, do not reconnect the cables.
(6)
Protective earth (PE) terminal
Grounding terminal
Section
3.1
Section
3.3
(7)
Battery holder
Install the the battery for absolute position data
backup.
Section
12.4
(1)
(3)
(2)
(4)
ഃ㠃
(5)
(6) (7)
ᗏ㠃
◚⥺ෆࡣMR-J4-200B௨ୗඹ㏻࡛ࡍࠋ
Bottom face
Side
The broken line area is the same as MR-J4-200B or less.
