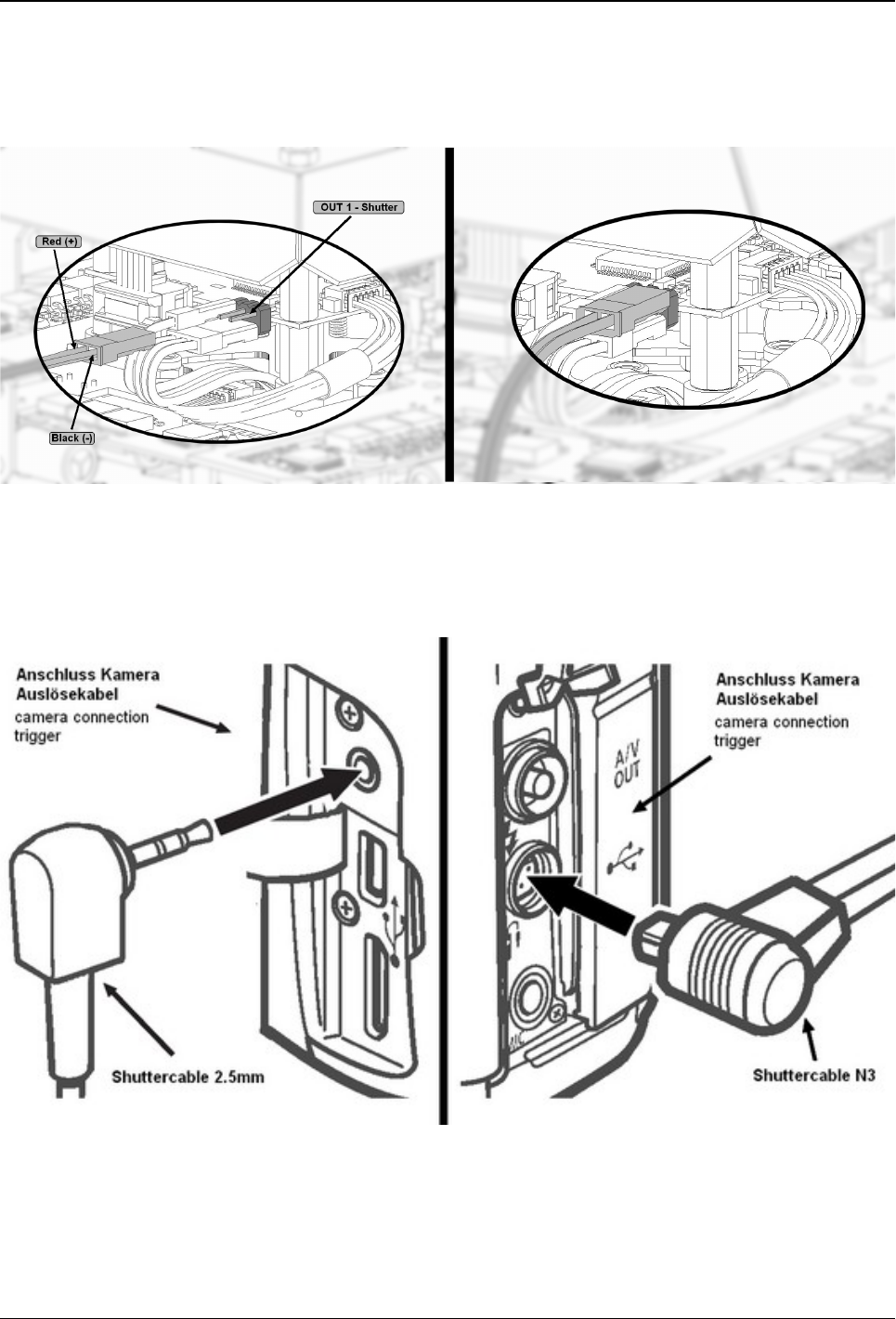

Camera trigger - Shuttercable
The Shuttercable can be ordered with a 2.5 mm jack or a N3 connector.
Using the Shuttercable, an attached camera can be triggered manually by the transmitter or automatically via the
FlightCtrl (e.g. during WayPoint flight).
The Shuttercable is connected with the BEC-coupling to the prepared switch output „Out2“ of the FightCtrl and will be
moved down and out through the Centerplates to the camera mount.
The 2,5mm jack / N3-connector needs to be connected to the appropriate socket of the camera.
Page 44 HiSystems GmbH
