Step 6: Checking the channel assignment

Those, as well as all other settings, do not need to be changed in the first step.

They are only there to verify.

To verify the assignment / function of each channel, please open the settings dialog.

This can be done by a „Click“ on the button „Settings“.

„EasySetup“

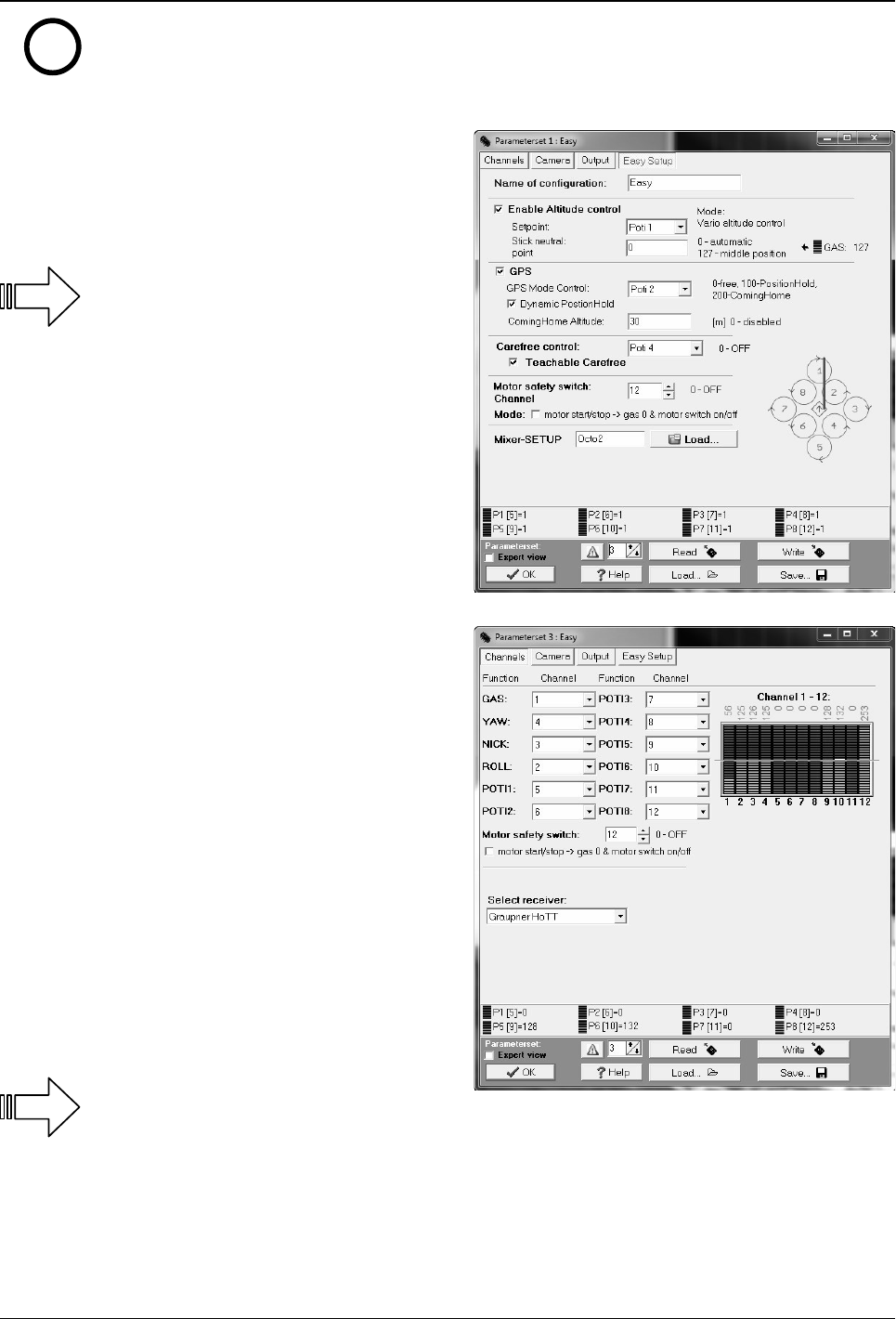

In the „EasySetup“ are all important functions, as well as their

channel assignments are listed.

The channels 5-12 should be entered as value

„Poti1-8“.

See also Channel assignment. (Ch.)

The setting is here as follows:

• Altitude control active => Ch. 5 => Poti1

• GPS (PositionHold, ComingHome) => Ch. 6 => Poti2

• CareFree control => Ch. 8 => Poti4

• Motor-Safety switch => Ch. 12

(Here the used channel will be entered directly)

• Mixer-SETUP => Okto2

To check on the function of the transmitter and each channel

please select the tab “Channels“ at the top of the window.

In that window all available channel assignments (max. 12)

are listed.

On the left side you can see the assignment of the individual

channels (Function => Channel) and on the right half will be a

green bar graph.

Using this bar graph all 12 channels can be individually

checked for proper function.

Moving now the sticks, operating switches, buttons or

potentiometer on the transmitter should display the

corresponding channel with an appropriate peak:

- Control sticks / Slider / Potentiometer => variable from 0-254

- 2-way switch => „off“ = 0 / „on“ = 254

- 3-way switch => „down“ = 0 / „middle“ = 127 / „up“ = 254

IMPORTANT : The respective peak should be in the range

between „0“ and „254“.

The correct receiver must be set under „Select receiver“ and

saved with the button „Write“.

If you already have a RC-Transmitter/Receiver, you must program your transmitter with the associated instruction

manual by yourself. To the FlightCtrl only accepts receiver with a PPM-Sum-signal or the S.BUS (Futaba).

Please note also the folding box „Select receiver“. There, the correct receiver can be selected. After changing the

receiver the selection must be saved with a „Click“ on the button „Write“ in the FlightCtrl.

Page 24 HiSystems GmbH
