Step 7: Testing the camera mount

If an optional camera mount has already been installed, it should be tested now.

Otherwise please skip this step and continue with „Step 8“.

The Servos from a connected camera mount are automatically controlled from the FlightCtrl.

In this way the camera mount is always held in balance during the flight. Additionally the camera mount can be adjusted

via the transmitter.

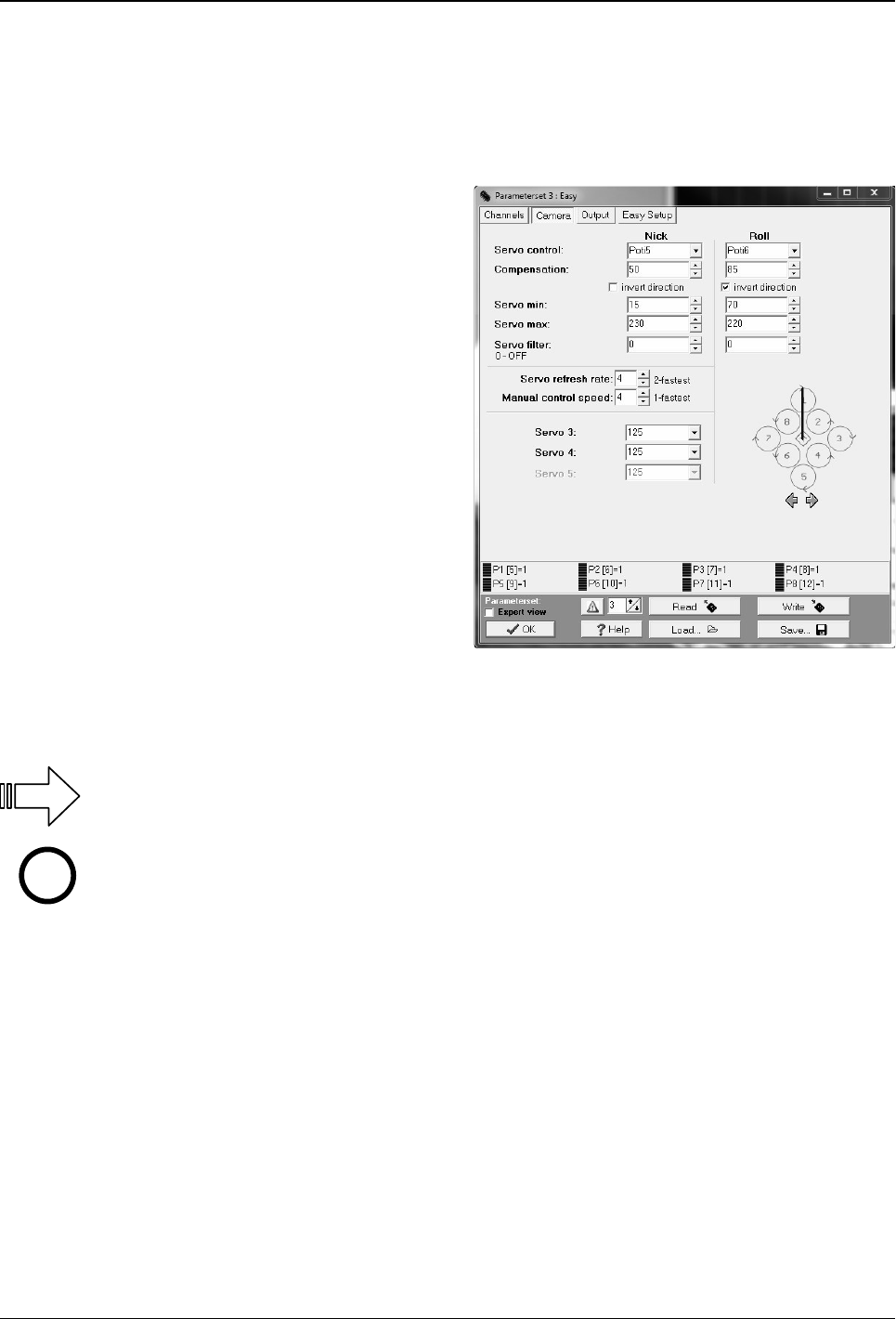

Through a „Click“ on the tab „Camera“, you can switch into

the corresponding window.

Under „Servo Control“, „Nick“ and „Roll“ there will be „Poti5“

and „Poti6“ displayed for manual control of the camera

mount.

If the assigned potentiometer on the transmitter will be moved

now, there will be no reaction at this time.

The camera mount will start moving after the gyroscopes of

the MikroKopter are calibrated (Pg. 29).

After the calibration of the Gyros the ARF-MikroKopter will „beep“ and the servos of the camera mount will adjust .

Now the camera mount can be moved through Nick- and Roll direction via the two assigned potentiometer on the

transmitter.

If the ARF-MikroKopter moves, the camera mount automatically adjusts to that tilt.

If the camera mount is not moving you should check wether the Servo plug is fully inserted and also in the

correct polarity.

HiSystems GmbH Page 25
