64 /
2
2
1
3
2.3.38 High voltage power supply
(1) Remove the contact Assy (see section 2.3.36).
(2) Unhook the connector of the high voltage power supply 1.
(3) Remove the two screws 2 to detach the high voltage power supply 1 and the tape harness 3.

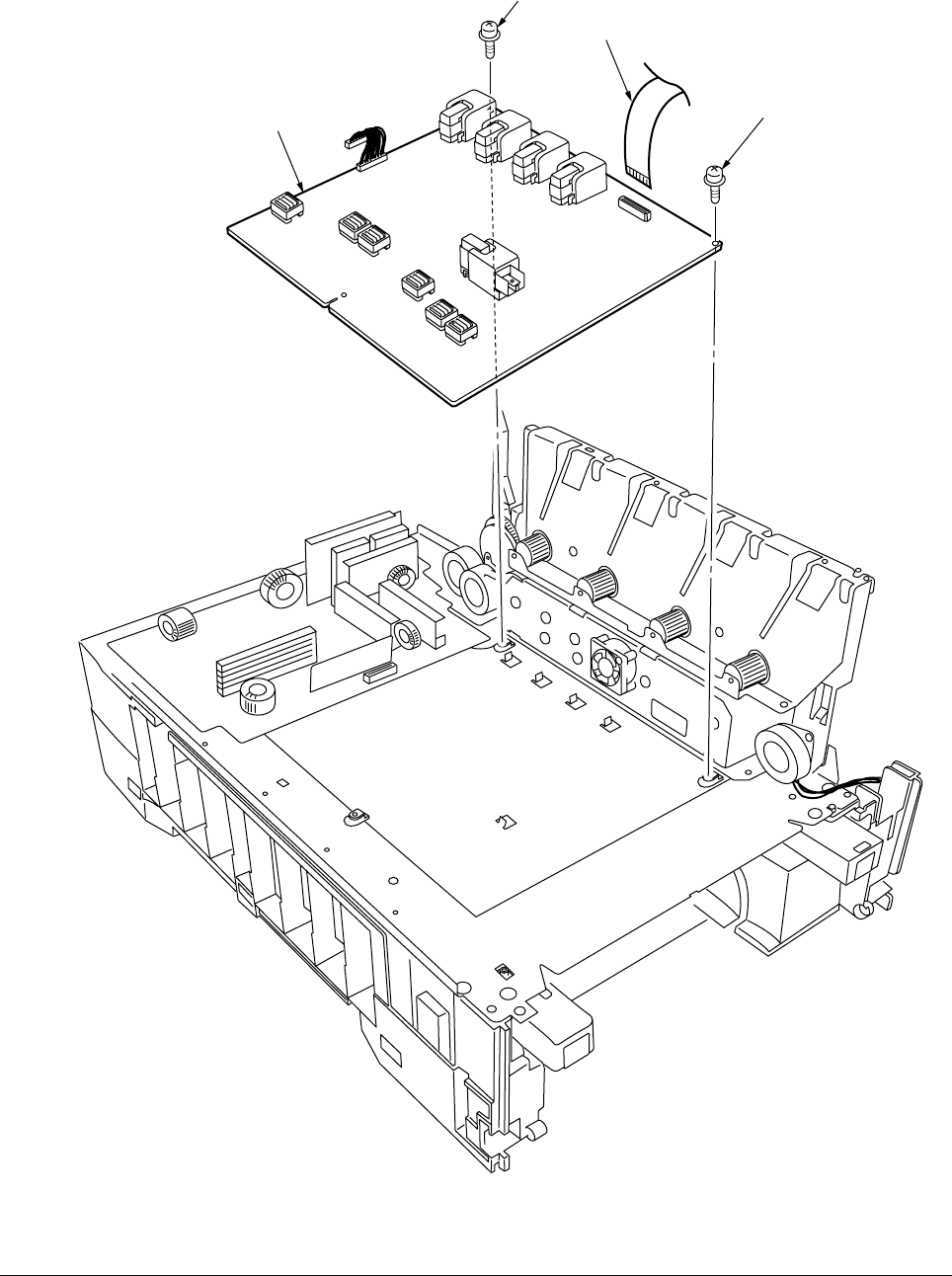

Figure 2-3-38 High Voltage Power Supply
