128 /

5 Fuser unit error

• Do fuser errors occur right after power ON?

(A)

• Yes Is the heat roller thermister disconnected or generating a short circuit? (See Fig. 5-1)

(Approx. 190k-980k. in room temperature of 0-43 degrees Celsius.)

• Yes Replace the fuser unit.

▼

• No Is the back-up roller thermister disconnected or generating a short circuit? (See Fig. 5-1)

(Approx. 190k-980k. in room temperature of 0-43 degrees Celsius.)

• Yes Replace the fuser unit.

▼

• No

▼

• No Does a fuser unit error occur approx. three minutes after power ON?

• No Proceed to (A).

▼

• Is the heater in the fuser unit turned ON? (Is it hot?)

• Yes Replace the engine board.

▼

• No Replace the fuser unit.

▼

• No Is AC voltage output between CN1 connector pin 1 and pin 3 in the low-voltage power unit?

• No Replace the low-voltage power unit.

▼

• Yes Replace the fuser unit.

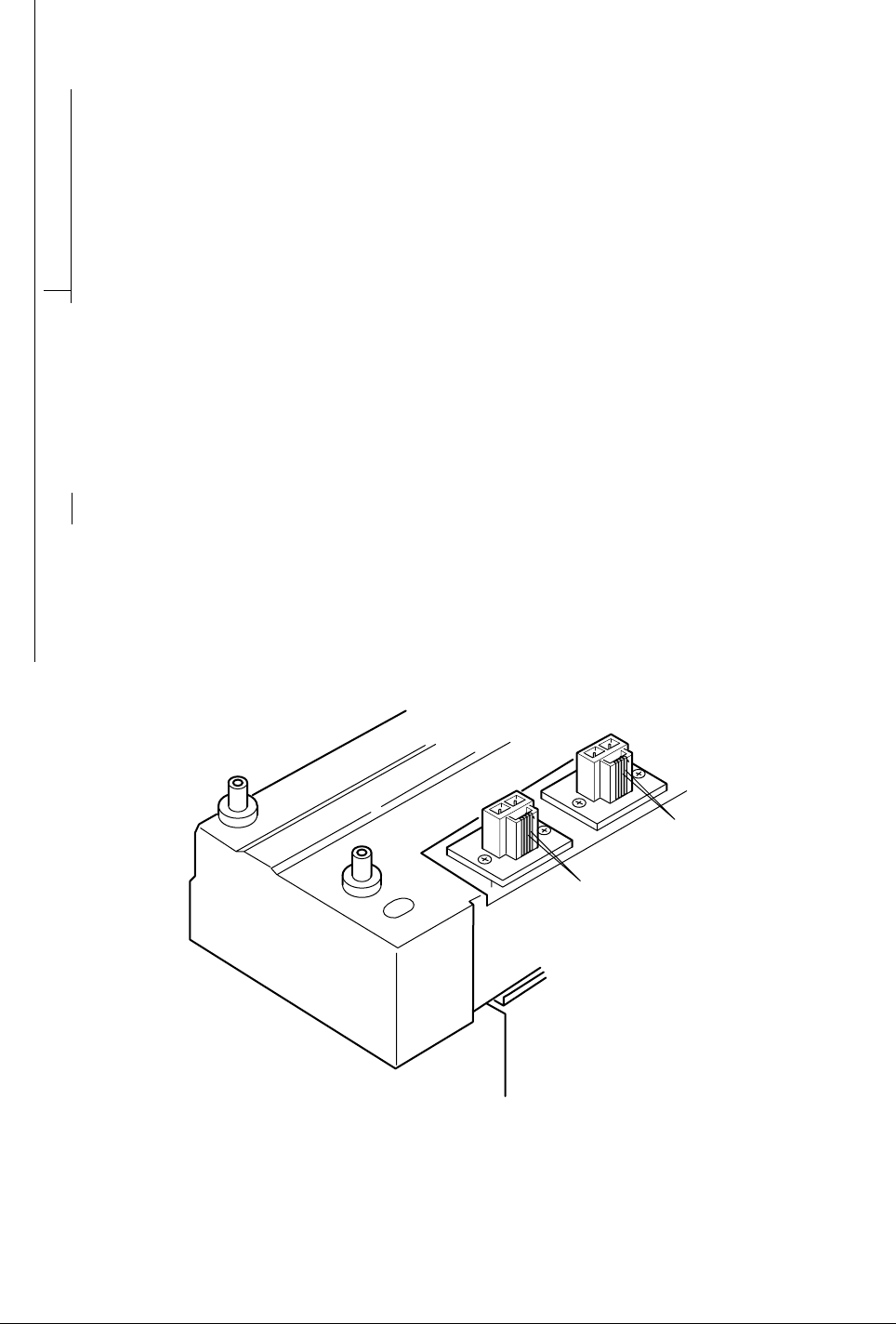

Figure 5.1

▼

Back-up roller thermister

Heat roller thermister
