63 /
4
1
4
2
5
4
3
2.3.37 Low Voltage Power Supply
(1) Remove the printer unit chassis (see section 2.3.25).
(2) Unhook the connector 1.
(3) Unscrew the screw 2 to remove the earth cable 3.
(4) Unscrew the six screws 4 to demount the low voltage power supply 5.

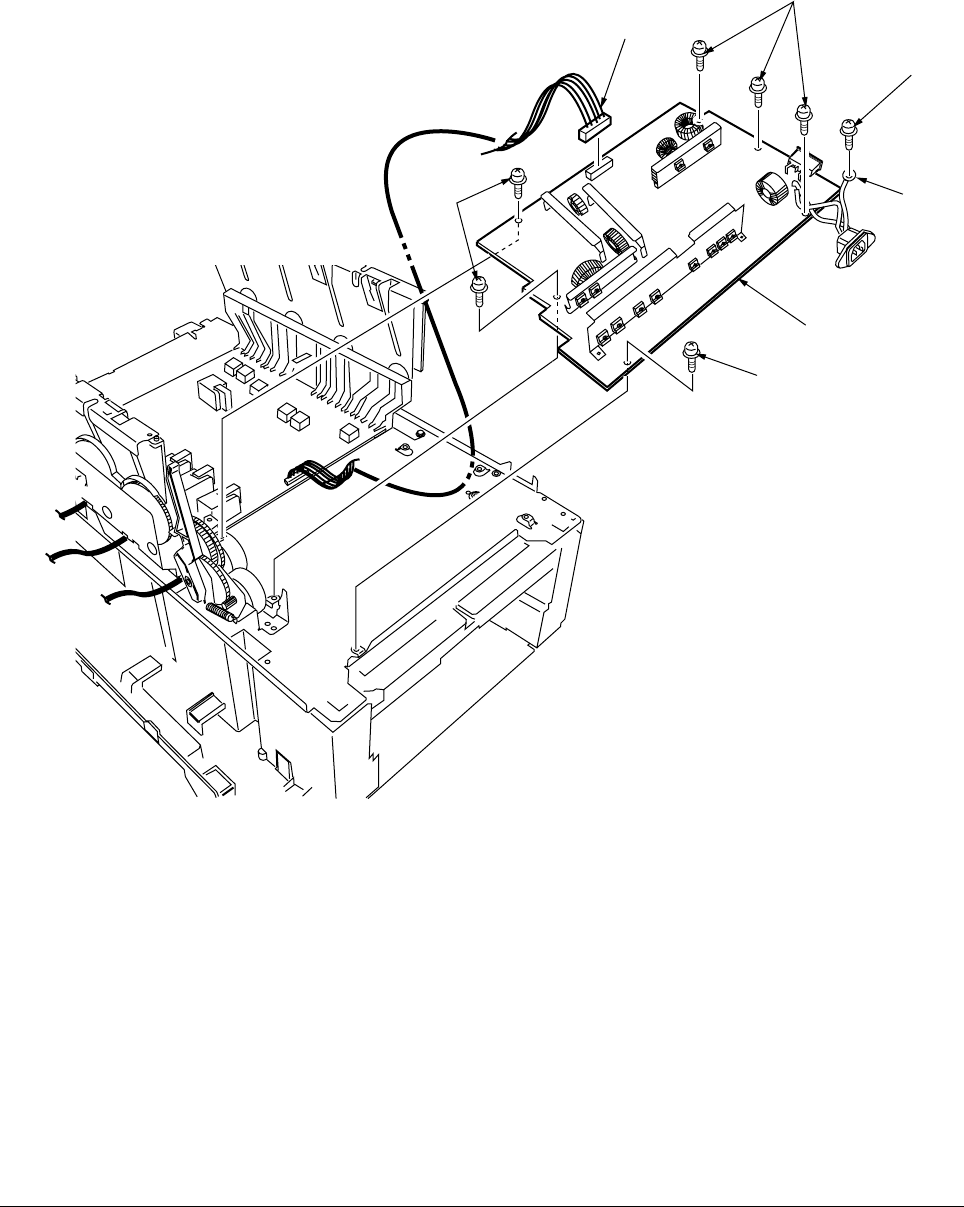

Figure 2-3-37 Low Voltage Power Supply
