3.4.4 Electronic Serial Number Input
[Outline]
The 22-character electronic serial number (E-S/N) that has been marked on each printer’s
nameplate is to be entered.
[Case that Requires Electronic Serial Number Input]
The EEPROM mounted on the PU board of a printer is replaced with a new one.
[Setting Method]
For the steps (1) to (8) of menu setting, see Media Thickness Detection Adjustment Calibration
3.4.2.1, steps (1) to (8).

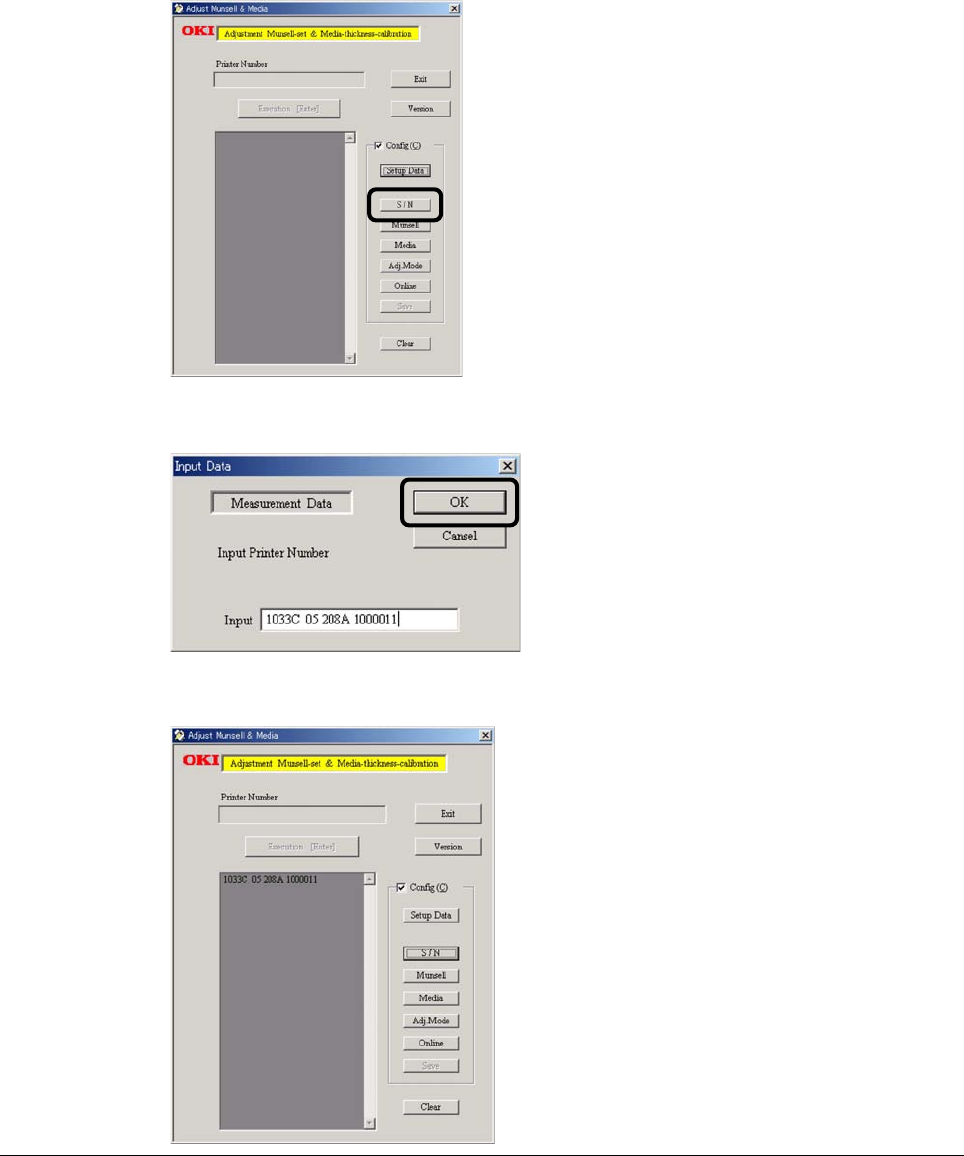

(9) The screen returns to the Adjust Munsell & Media screen. Press S/N.
(10) The Input Data screen is displayed. Type 22-character electronic serial number in the Input
field and press OK.
(11) When the electronic serial number input is completed properly, the Adjust Munsell & Media
screen appears.
