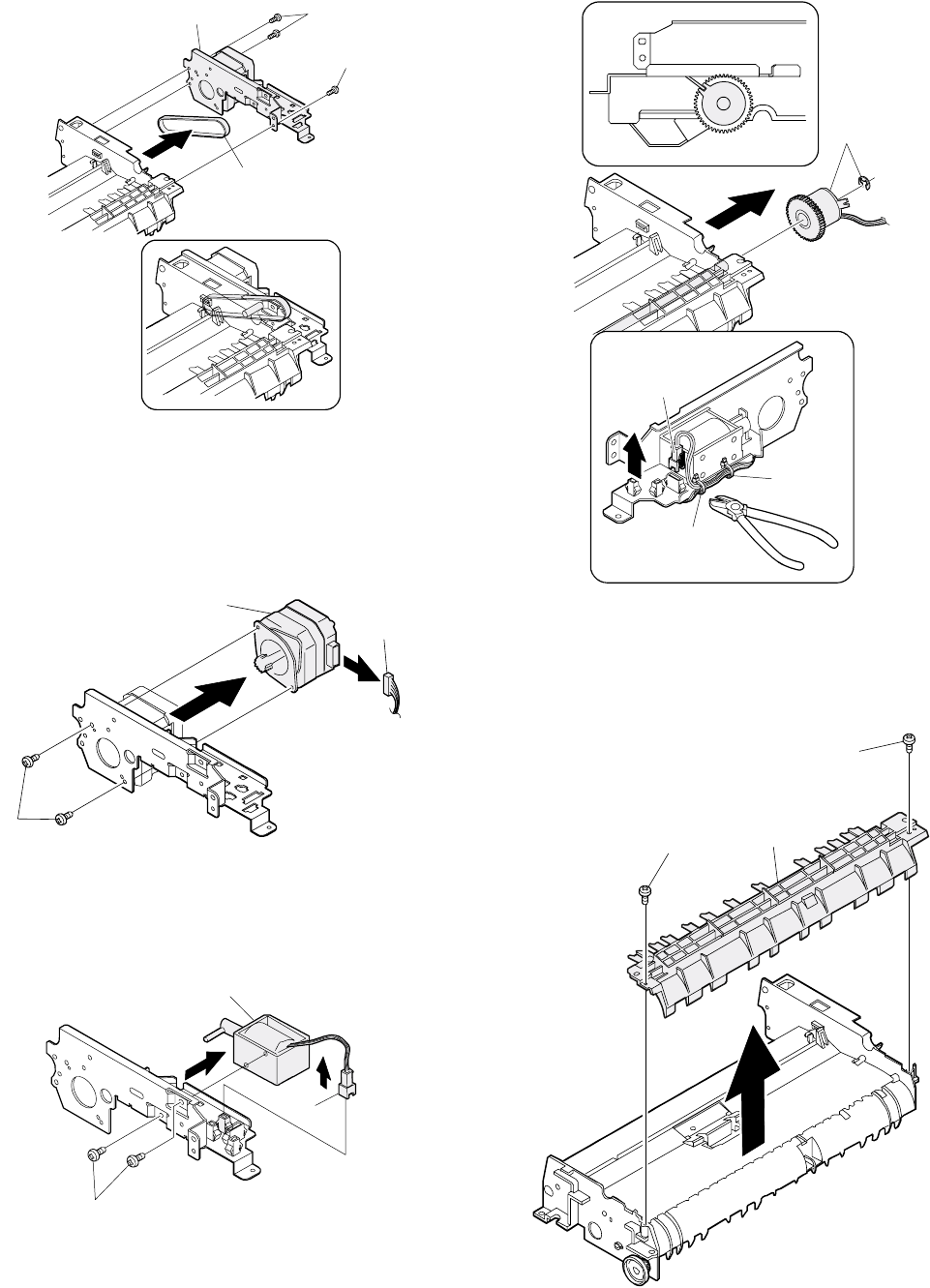

AL-1551 DISASSEMBLY AND ASSEMBLY 8-25

L. Belt 2

1) Remove three screws.

2) Remove the drive unit.

3) Remove the belt.

Note:When reassembling, hang the belt on the boss.

M. SPF motor

1) Remove the harness.

2) Remove two screws.

3) Remove the SPF motor.

N. Solenoid

1) Remove the harness.

2) Remove two screws.

3) Remove the solenoid.

O. Clutch

1) Cut the band with nippers.

2) Remove the harness.

3) Remove the clutch.

P. Paper supply roller

(1) Remove the parts.

1) Remove the two screws.

2) Remove the parts.
