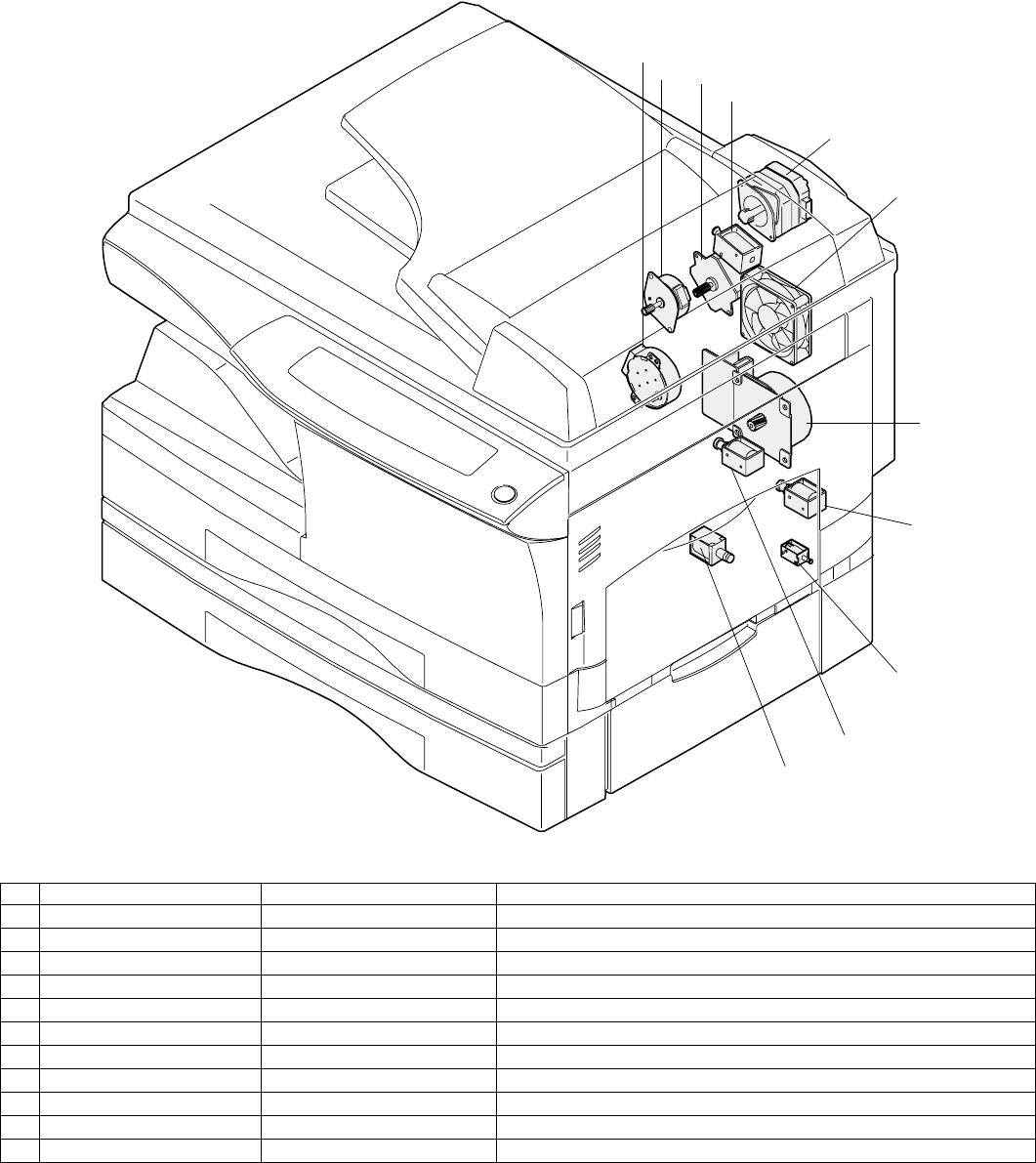

AL-1551 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-3
4. Motors and solenoids
No. Part name Control signal Function,operation
1 Main motor MM Drives the copier.
2 Mirror motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Cools the optical section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 SPF motor SPFM Drives the single pass feeder
9 Duplex motor DMT Devices the duplex paper transport section
10 Original feed solenoid SPUS Original feed solenoid
11 Paper feed solenoid CPFS2 Cassette Paper feed solenoid 2
1
2
9
10
3
4
5
7
6
11
8
