AL-1551 DISASSEMBLY AND ASSEMBLY 8-24

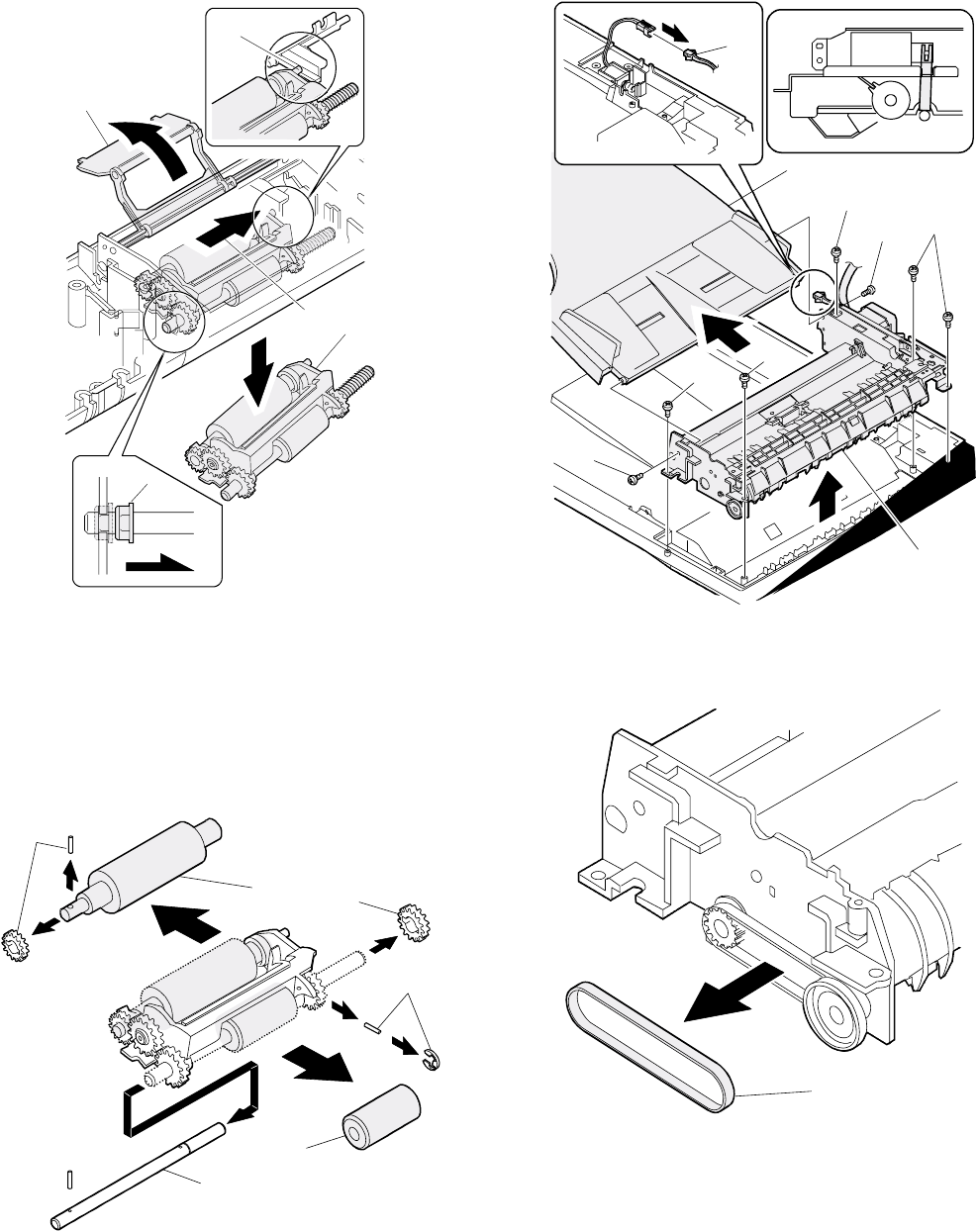

I. Manual paper feed roller, pickup roller
(1) Remove the pickup unit.
1) Lift the paper stopper.
2) Slide the takeup roller unit.
3) Slide the bushing in the arrow direction.
4) Remove the takeup roller.
Note:When reassembling, hang the convex portion of the roller unit on
the solenoid arm.
(2) Remove the Manual paper feed roller, pickup roller.
1) Remove the parts.
2) Remove the manual paper feed roller.
3) Remove the pickup roller.
4) Remove the parts.
J. Transport unit removal
1) Remove the harness.
2) Remove two screws.
3) Remove the document tray unit.
4) Remove five screws.
5) Remove the transport unit.
K. Belt 1
1) Remove the belt.
1
4
2
3
A
1
2
3
1
1
4
2
3
4
1
2
4
4
4
5
1
