10 - 3
10

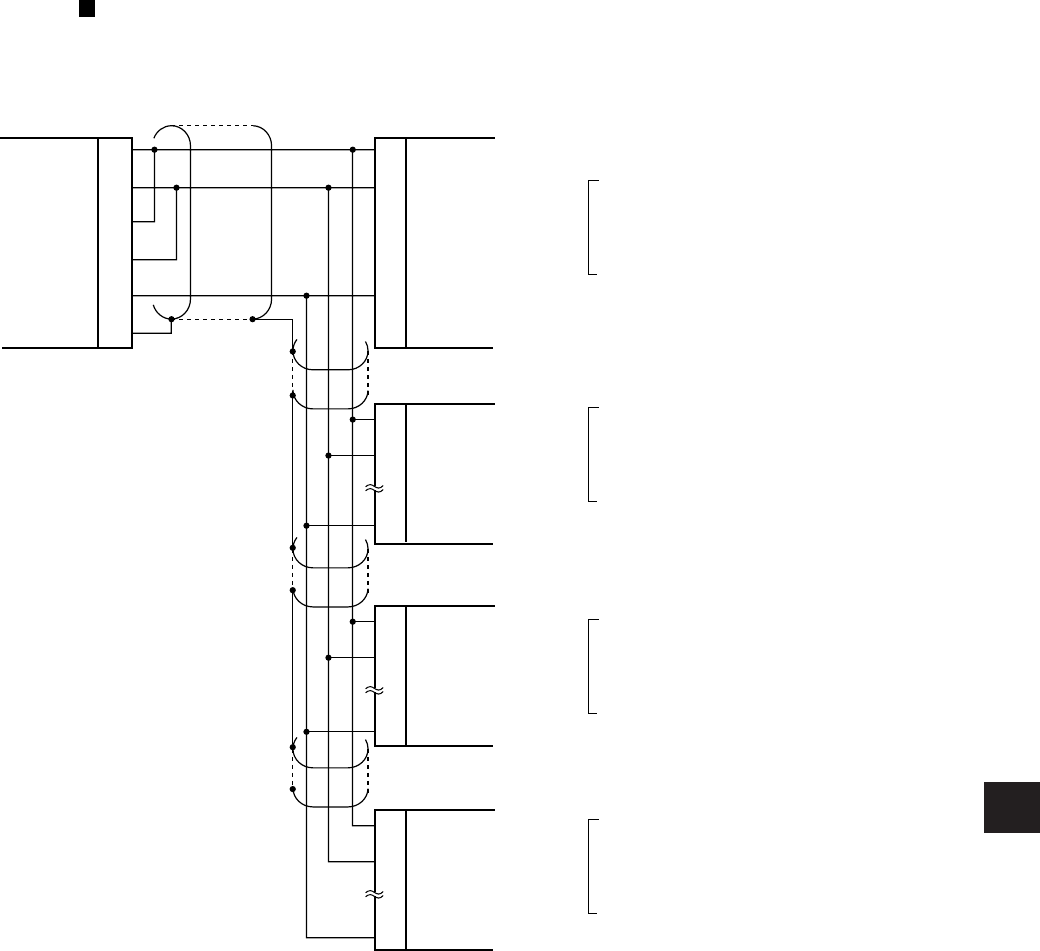

Wiring between this module and driver (X-/Y-/Z-/A-axes)
TXD
/TXD
RXD
/RXD
GND
FG
TD+
TD-
SG
1
10
9
6
11
12
8
7
1
TD+
TD-
SG
8
7
1
TD+
TD-
SG
8
7
1
TD+
TD-
SG
8
7
1
JW-12PS/14PS
Connector for tool
connection
(CN1)
X-axis GPPA1-CN3
Y-axis GPPA1-CN3
Z-axis GPPA1-CN3
A-axis GPPA1-CN3
Driver side communications
connector
(when 4 axes are used)
X-axis
SW1
1 : OFF, 2 : OFF, 3 : OFF (address 0)
4, 5 : OFF (termination resistance OFF)
6, 7 : OFF(RS-485A communications)
8 : (alarm OFF)
SW2
1 : ON, 2 : OFF, 3 : OFF, 4 : OFF
Z-axis
SW1
1 : OFF, 2 : ON, 3 : OFF (address 2)
4, 5 : OFF (termination resistance OFF)
6, 7 : OFF (RS-485A communications)
8 : OFF (alarm OFF)
SW2
1 : ON, 2 : OFF, 3 : OFF, 4 : OFF
Y-axis
SW1
1 : ON, 2 : OFF, 3 : OFF (address 1)
4, 5 : ON (termination resistance ON)
6, 7 : OFF (RS-485A communications)
8 : OFF (alarm OFF)
SW2
1 : ON, 2 : OFF, 3 : OFF, 4 : OFF
A-axis
SW1
1 ( ON, 2 : ON, 3 : OFF (address 3)
4, 5 : ON (termination resistance OFF)
6, 7 : OFF (RS-485A communications)
8 : OFF (alarm OFF)
SW2
1 : ON, 2 : OFF, 3 : OFF, 4 : OFF
Driver side communications
switch setting
* For details, see the instruction manual for the driver.
*
