AR-651/810 CONTROL PANEL 5 - 11
5. 5. Disassembly and Replacement
[A] Control panel unit
(1) Open the front cover and take off the front side
right inner cover, toner cartridge drive unit and
toner recycle unit.

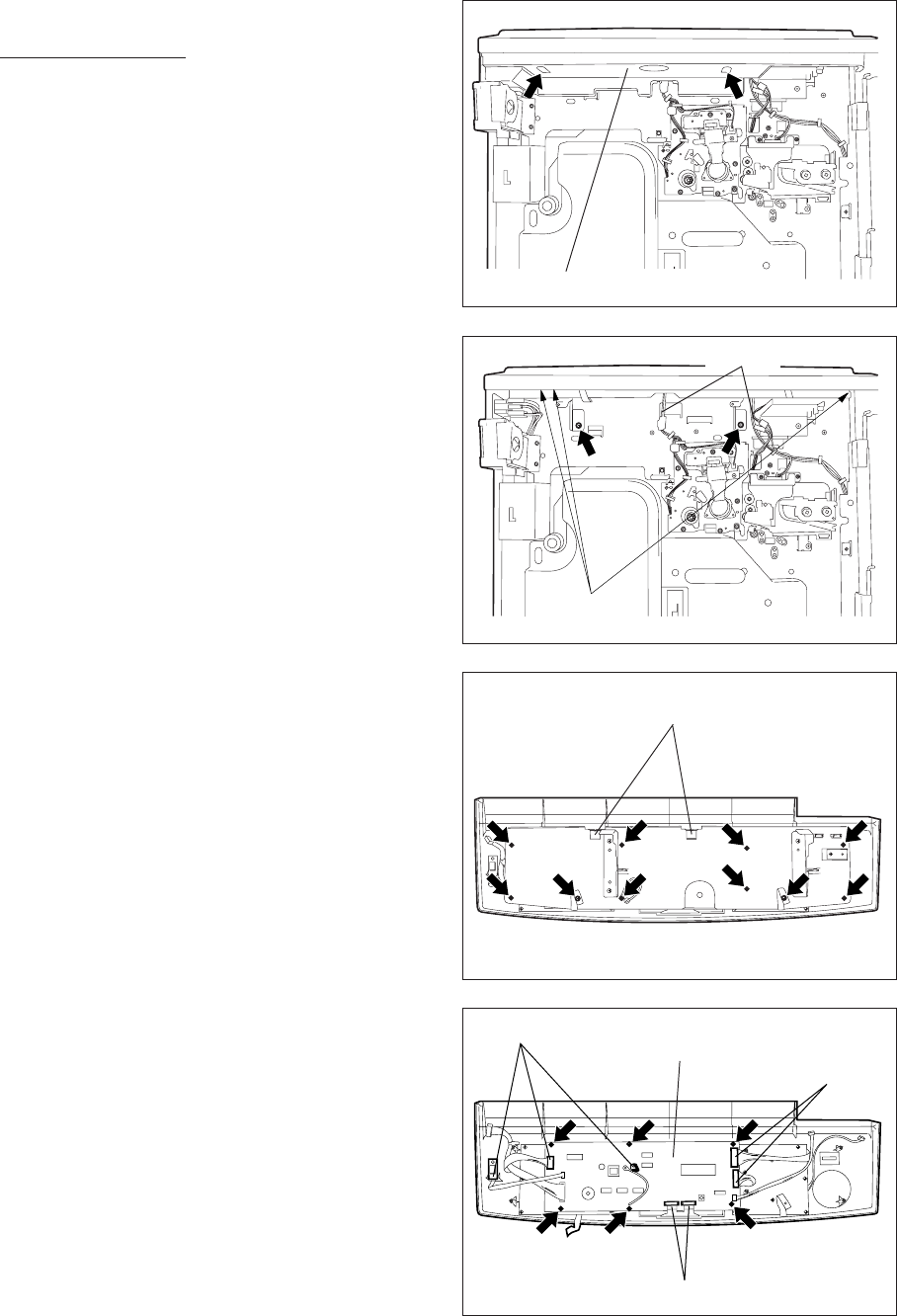

(2) Remove 2 screws and take off the control panel
bottom cover.
(3) Disconnect 3 connectors, remove 2 screws,
release harnesses from 2 clamps and take off
the control panel unit.
Control panel bottom cover
Connector
Clamp
Connector
Connector
Connector
Connector
DSP board
(4) Remove 10 screws, disconnect 2 connectors
and release the bracket after disconnecting 1
connector at the counter.
(5) Disconnect 7 connectors, remove 6 screws and
take off the DSP board.
