AR-651/810 PAPER FEEDING SECTION 9 - 24

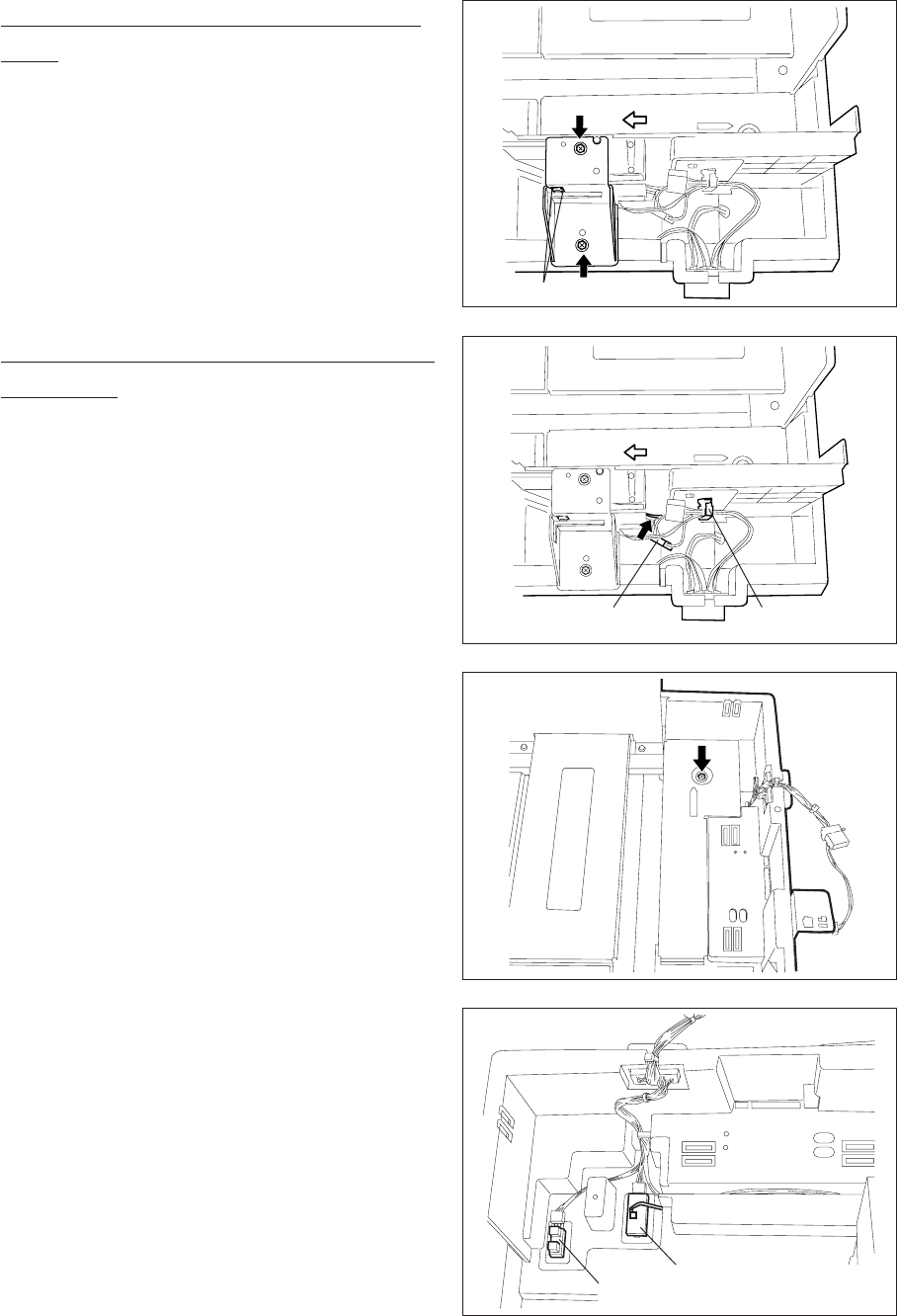

(G-5) Standby side paper mis-stacking detection
sensor
(1) Remove 2 screws and release the sensor
bracket.
(2) Disconnect 1 connector.
(3) Release the latches and take off the sensor.
(G-6) End fence home position sensor/Standby side
empty sensor
(1) Disconnect 1 connector and release the harness
from the clamp.
(2) Remove 1 screw fixing the standby side rear
guide. Then move the guide toward the direction
of the white arrow and take it off.
(3) Remove 1 screw and release the bracket.
(4) Disconnect the connector.
(5) Release the latches from the back side of the
tandem LCF cassette, and take off the end fence
home position sensor and standby side empty
sensor.
Latch
Connector
End fence home position sensor
Standby side empty sensor
Clamp
