AR-651/810 DEVELOPER UNIT 12 - 1
12. DEVELOPER UNIT
12. 1. Construction
This chapter describes about the following units related to the development process, parts, control
circuit, etc.
• Toner cartridge drive unit
• Toner recycle unit
• Developer unit Developer material
Mixer unit
Paddle
Transport sleeve (magnetic roller)
Upper/Lower developer sleeve
Doctor blade
Auto-toner sensor
Scattered toner recovery roller
• Developer unit drive section
Drum
Upper developer sleeve
Transport sleeve
Doctor blade
Paddle
Mixer unit
Auto-toner sensor

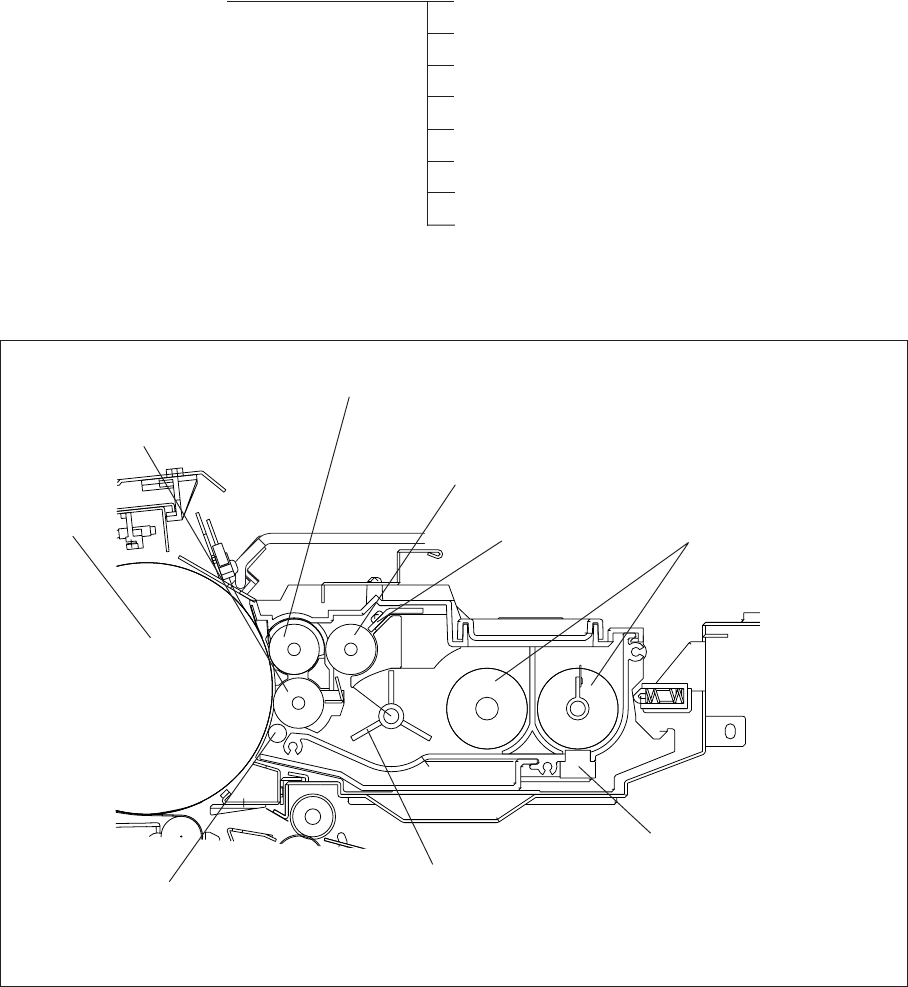

[Developer unit sectional view]
Lower developer sleeve
Scattered toner recovery roller
