Operating in Manual Mode
3-22 Tenth Edition 9871
Rotating the Theta Assembly
CAUTION:
EQUIPMENT DAMAGE. Theta assembly does not move a full 360
degrees. DO NOT FORCE THETA ASSEMBLY IF YOU MEET RESISTANCE
WHILE TURNING IT.
If you need to rotate the theta assembly, grasp it and carefully turn the
assembly, as shown in Figure 3-14.
Note: If the assembly meets resistance and stops before the desired position is
reached, it has contacted a stopping mechanism (Figure 3-15 on
page 3-23).
Rotate the shaft in the opposite direction.

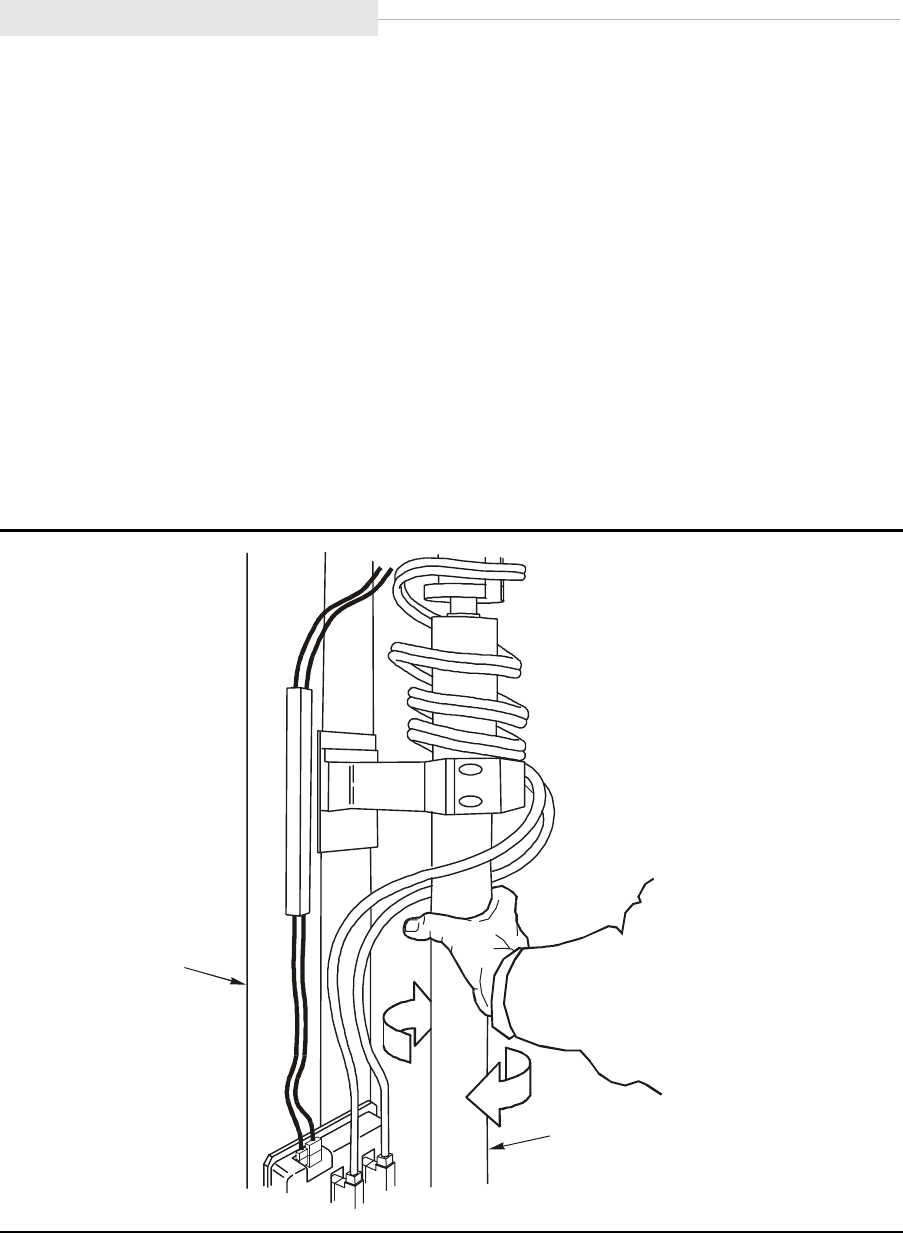

Figure 3-14. Rotating the Theta Assembly
Z MECHANISM
THETA
ASSEMBLY
E4
00
4
