Camera Connection

Camera connection is pretty easy. Plug the power supply into the camera and

connect the camera to the computer USB port using the supplied USB cable.

Note the computer recognizes the camera only if it is also powered. Camera

without power act the same way as the unplugged one from the computer point

of view.

When the camera is powered and connected to the computer (with appropriate

drivers installed), it starts to initialize filter wheel. The internal filter wheel

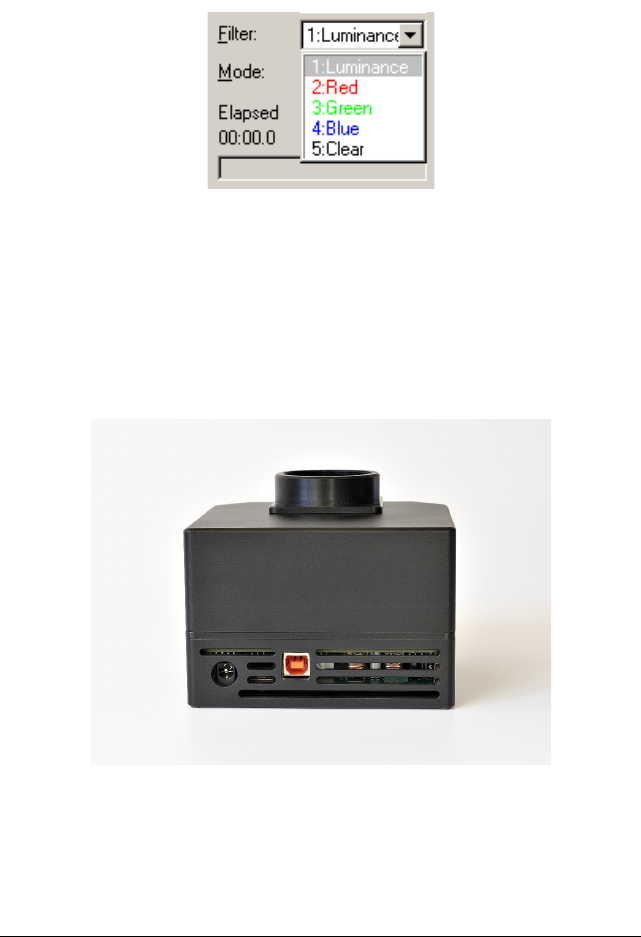

Illustration 9: Filters offered

by the CCD Camera tool

Illustration 10: Power connector (left) and USB connector

(right) on the bottom side of the camera head
