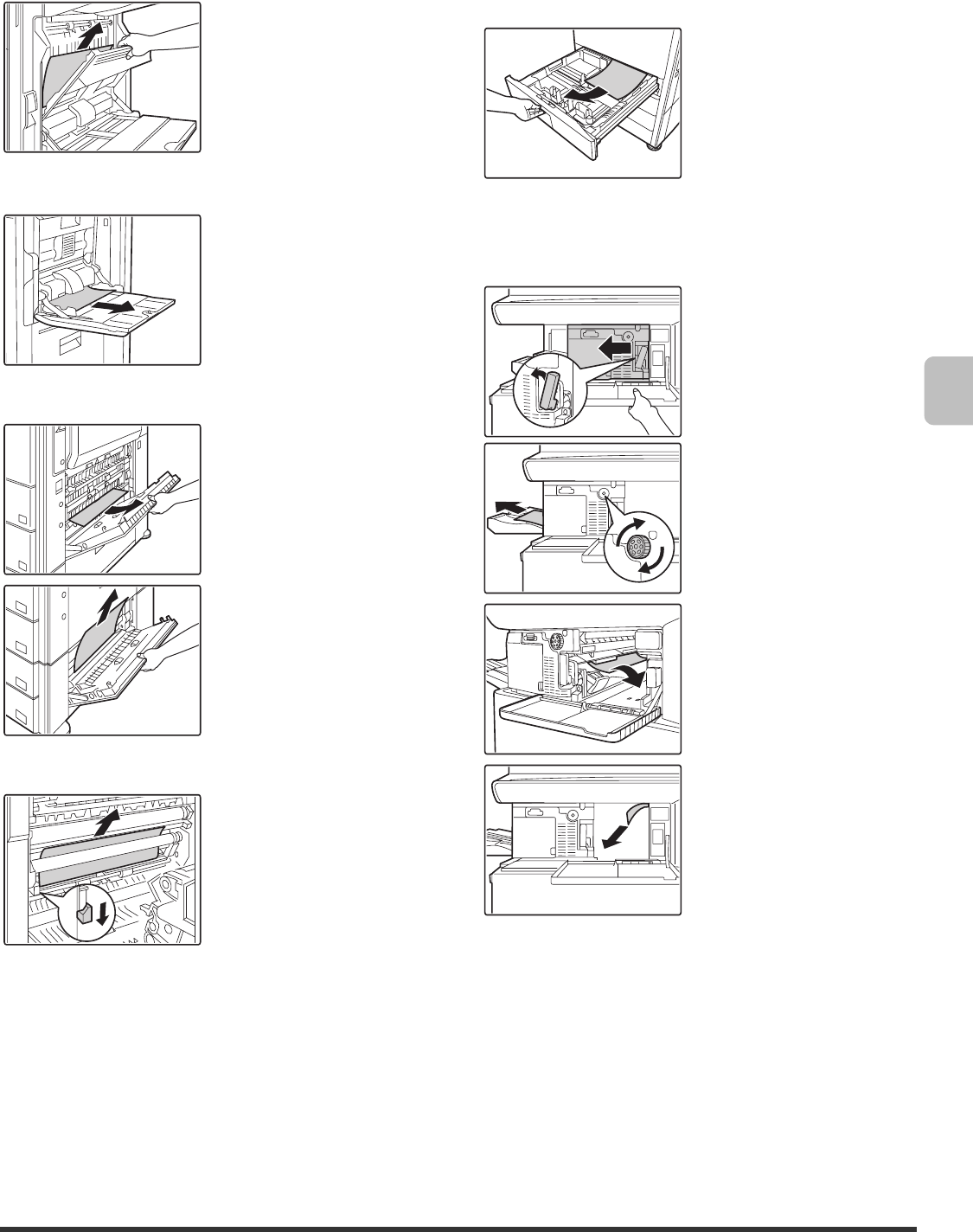

(5) Paper misfeed in the reversing unit
Open the Paper reversing
section cover and remove
the misfed paper.
(6) Paper misfeed in the bypass tray
(7) Paper misfeed in tray 1 to tray 4 (side)
The misfeed may have
occurred inside the machine.
Check carefully and remove
it.
(8) Paper misfeed in the transport area
Lower the lever in the
direction of the arrow to
remove the misfed paper.
(9) Paper misfeed in tray 1 to tray 4 (in the
tray)
Before pulling the tray out,
open the right cover and
check if there is a paper
misfeed. If you pull the tray
out without checking, you
may tear misfed paper and
make it more difficult to
remove the pieces that remain in the machine.
☞ (7) Paper misfeed in tray 1 to tray 4 (side)
(10) Paper misfeed in the finisher
While pressing the lever over
to the left, slide the finisher to
the left until it stops.
Turn roller rotating knob in
the direction of the arrow to
remove the misfed paper.
Make sure that there is no
misfed paper in the machine.
