Connections

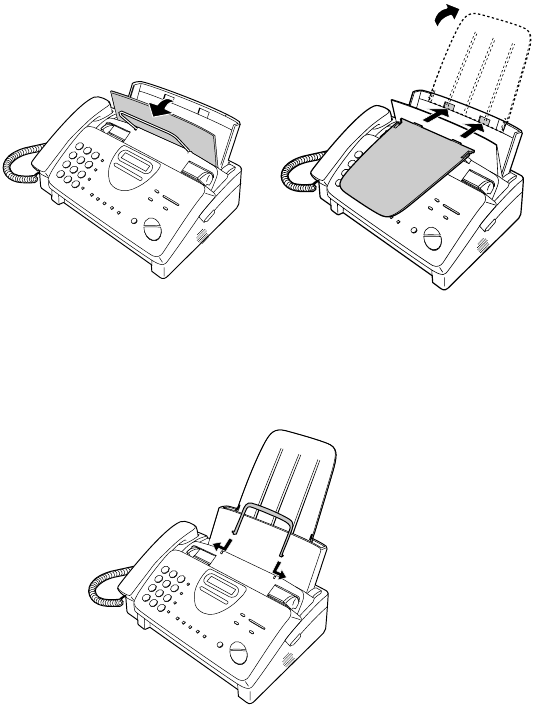

Attaching the tray extension and document support

Attach the paper tray extension.

♦

Pull the paper release plate forward. Insert the paper tray extension

horizontally into the notches in the paper tray. Rotate the paper tray

extension up until it snaps into place.

Attach the original document support.

Note: The original

document support

has a top side and a

bottom side. If you

cannot insert the

tabs on the support

into the holes, turn

the support over.

all-ux340L.book Page 14 Thursday, December 23, 1999 5:37 PM
