Connections

Extension phone (optional)

If desired, you can connect an extension phone to the TEL. SET socket on the

fax.

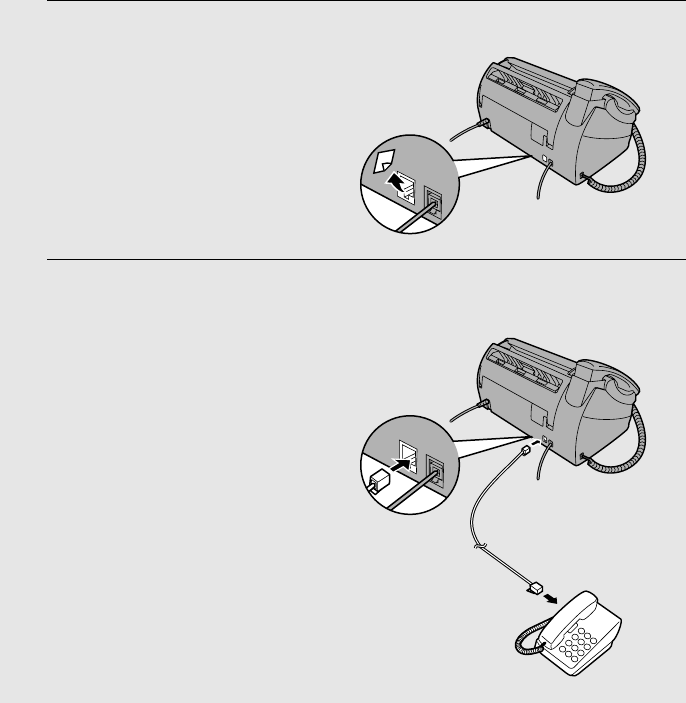

1 Remove the seal covering the TEL. SET

socket.

2 Connect the extension phone line to

the TEL. SET socket.

Note: In New Zealand, not all standard telephones will respond to incoming

ringing when connected to the extension socket of the equipment.

LIN

TEL

TEL.

LIN

TEL.

all.bookPage14Thursday,November15,20014:31PM
