Projecting images from a computer

Each time the [Aspect] button is pressed, the aspect mode changes in the

order Normal, 4:3, and 16:9.

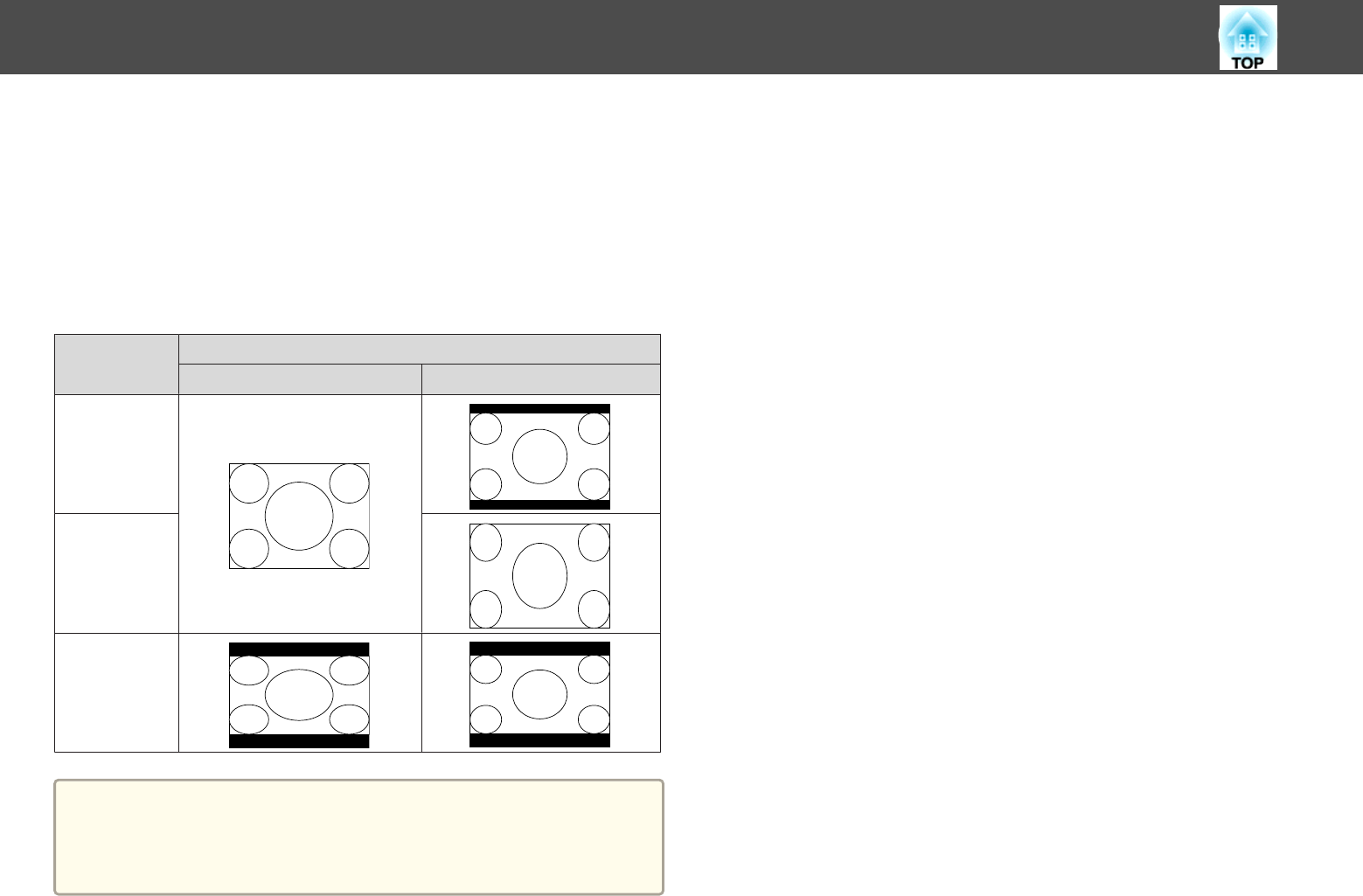

The following shows projection examples for each aspect mode.

Aspect mode Input Signal

XGA 1024X768(4:3) WXGA 1280X800(16:10)

Normal

4:3

16:9

If parts of the image are missing, set the Resolution setting to Wide

or Normal from the Configuration menu, according to the size of the

computer panel.

s Signal - Resolution p.99
