MX-CFX1 DISASSEMBLY AND ASSEMBLY 6 – 7

7. Note on assembly

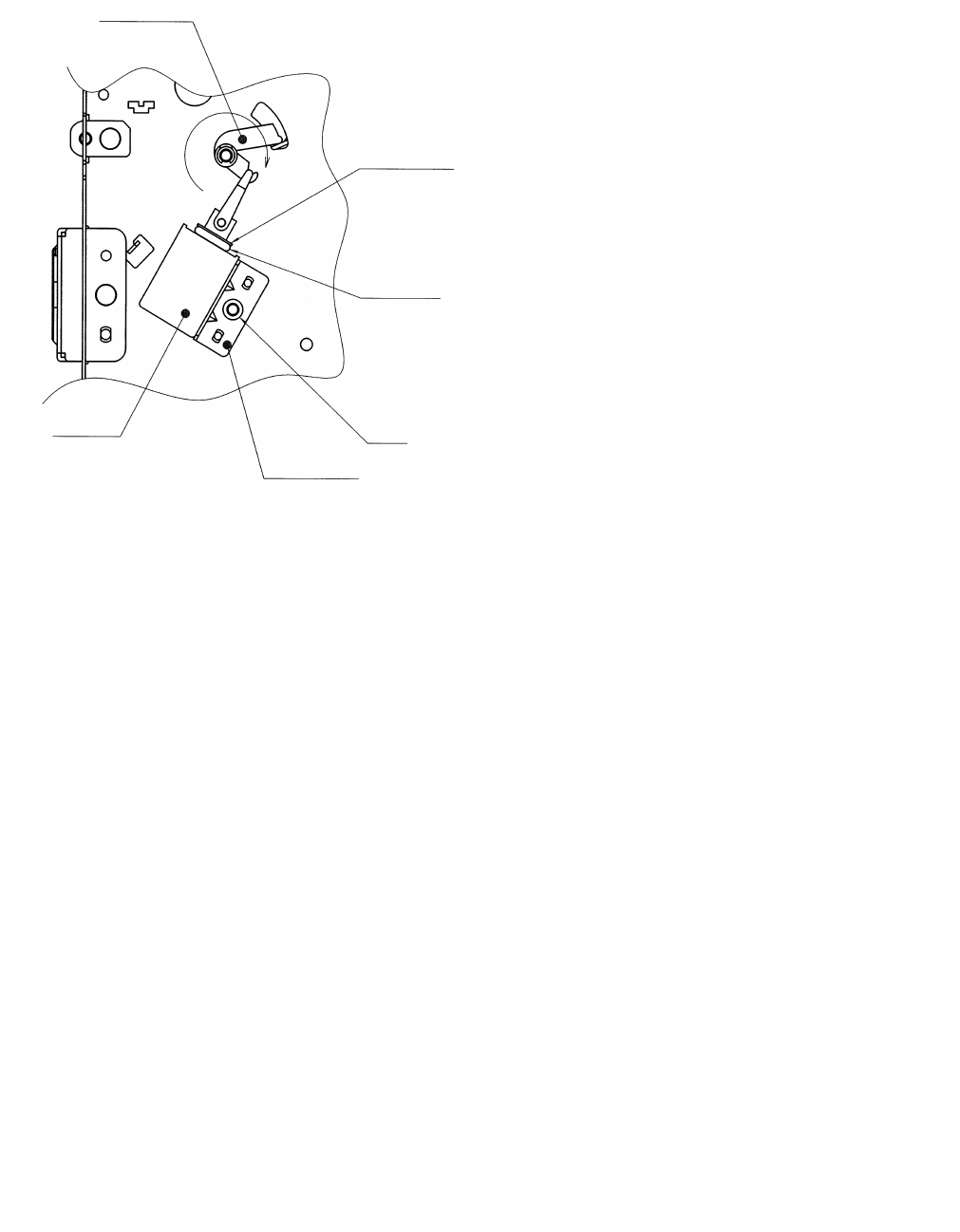

A. Reverse flapper solenoid adjustment

1) Rotate the solenoid lever (LVR-FM-SOL) fully clockwise.

2) Adjust the position of the bracket (BKT-FM-SOL) of the sole-

noid so that the solenoid's arm is completely retracted (that

there is no clearance in the rubber spacer, the stopper E-ring,

and the main unit of the solenoid). When adjusted, fix the

bracket with screws.

LVR-FM-SOL

Stopper E-ring

Rubber spacer

Solenoid

main unit

Screw

BKT-FM-SOL
