5-5

CHAPTER5

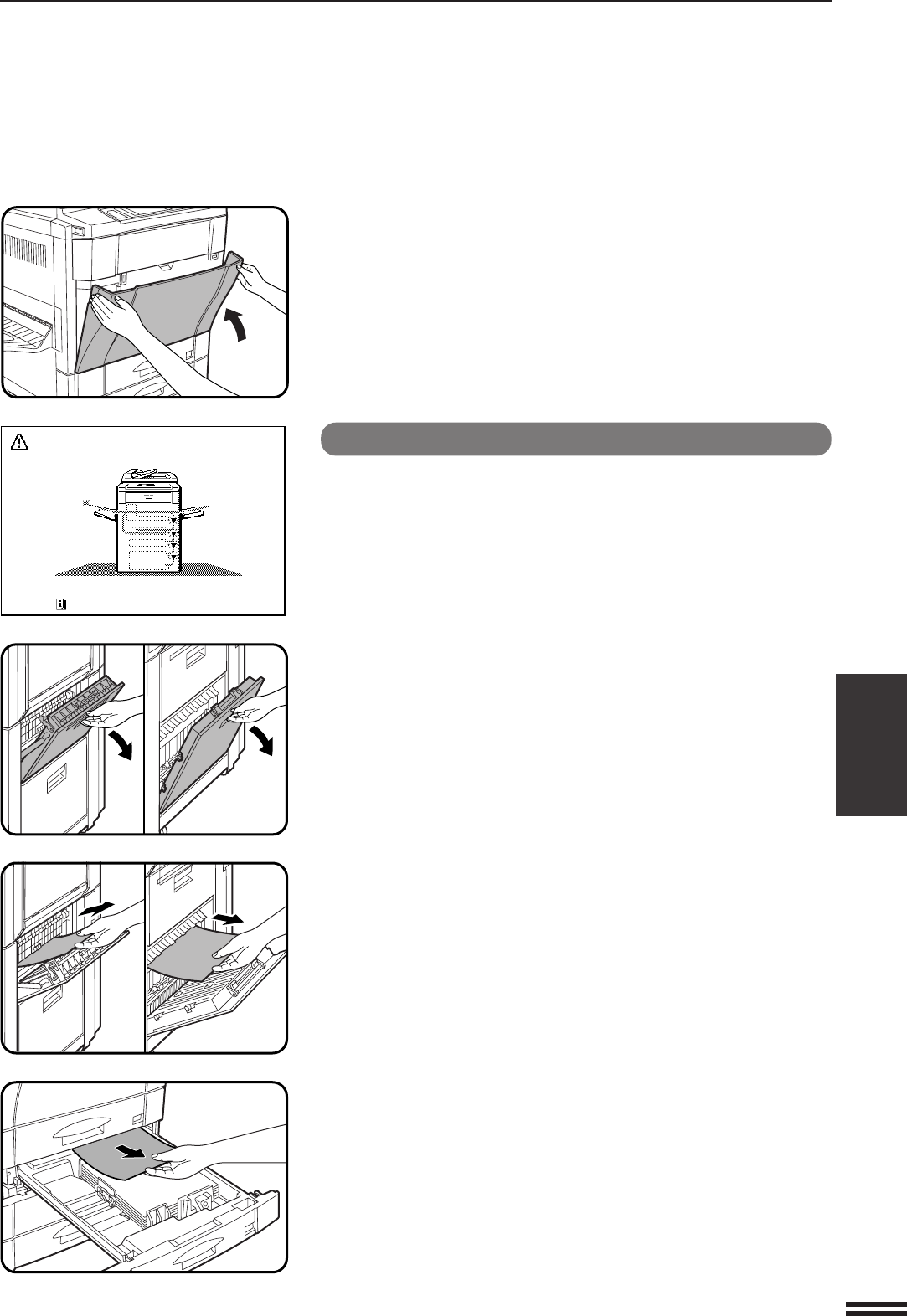

COPIER TROUBLE? Misfeed removal

MISFEED REMOVAL

Close the front cover.

Misfeed in the paper trays

Open the right side covers.

●

Grasp the handle and gently open the cover.

Remove the misfed paper.

●

Be careful not to tear the misfed paper during removal.

If the paper cannot be seen from the side, pull out the

paper tray which was in use and remove the misfed

paper.

●

Be careful not to tear the misfed paper during removal.

MISFEED HAS OCCURRED.

CLEAR INDICATED AREA.

PRESS FOR RECOVERY INSTRUCTIONS.
