ProtoMat 95s/II

Manual

45

6.3 Functional elements on the plotter head

1

2

5

6

10

11

8

9

12

13

14

15

7

16

3

4

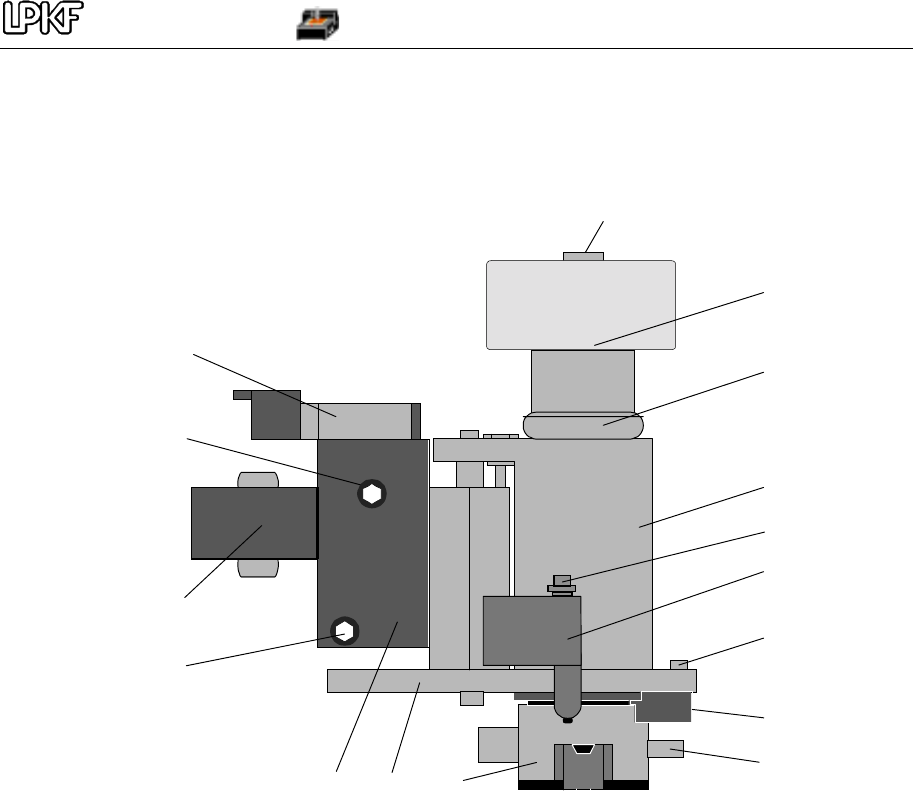

Side view of plotter head

1.

Valves

2.

Adjuster for damped travel, upwards

3.

Extraction

4.

Adjuster for damped travel, downwards

5.

Pneumatic block

6.

Base plate for motor

7.

Pneumatic working depth limiter

8.

Pneumatic connection for the collet

9.

High-frequency spindle with pneumatic cylinder

10.

Stop ring

11.

Retaining block

12.

Pneumatic connection for active auxiliary clamp

13.

Active auxiliary clamp

14.

Locating screw for working depth limiter

15.

Setting screw for knurled nut

(Warning - do not move.)

16.

Compressed air connection
