Setup
28 ProtoMat 95s/II
5.3 Preparing the tools
5.3.1 The spacer ring press
All tools must be fitted with spacer rings to ensure the precise pick up
and set down of tools.
The spacer ring press used to force the spacer rings onto the tools
comprises the following parts:

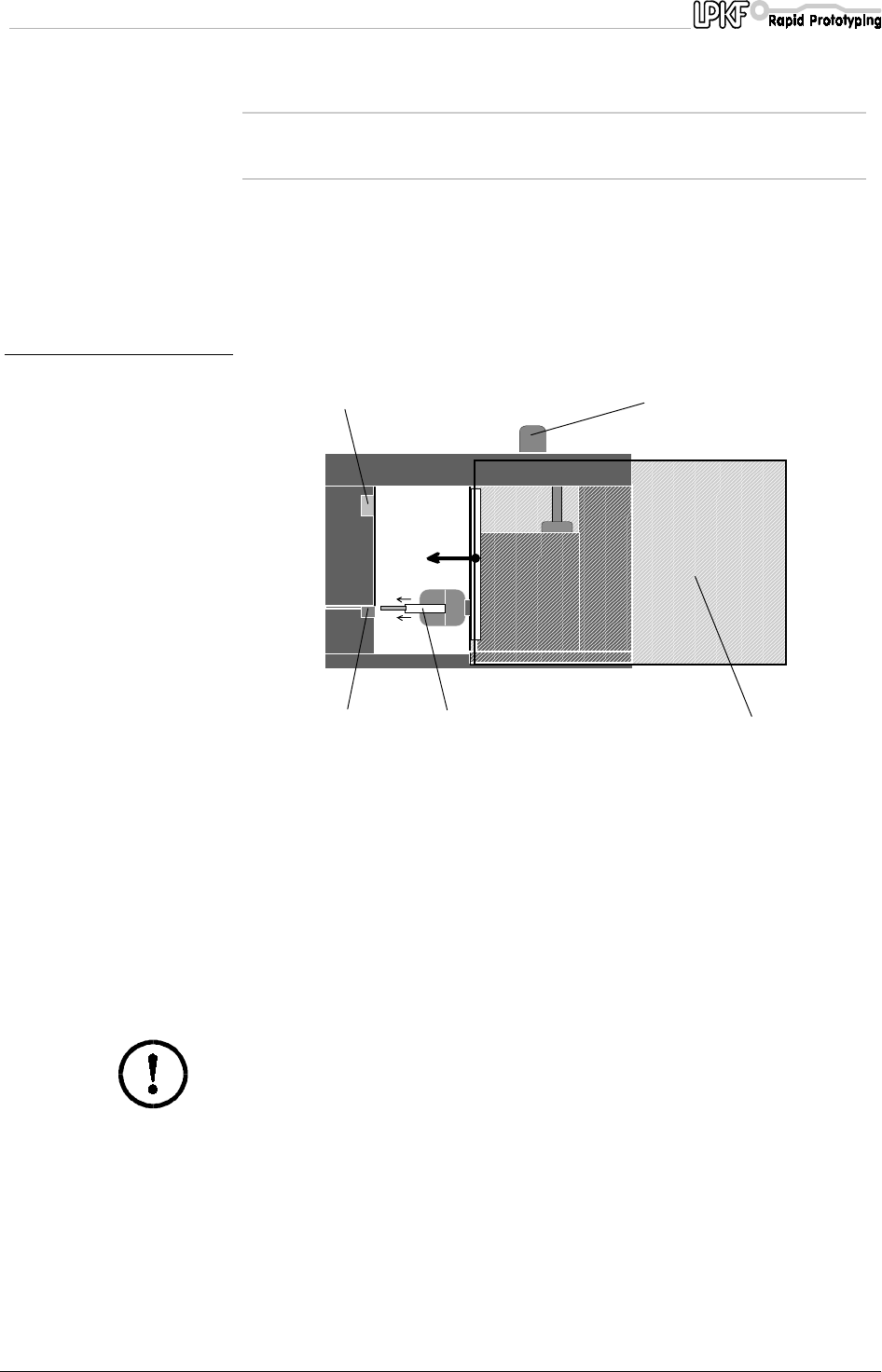

fig. 15:
The spacer rings are fed into the spacer ring press magazine (
1
) and the
tool (
4
) is pushed into the pressing tool with the cutting edge towards the
spacer ring (
5
). The cover cap (
3
) must now be closed to the stop so that
pressing can take place. The prepared tool may now be removed.
Caution! The working depth of the tool concerned will be too deep
if the tool has not been pressed into the ring as far as the stop.
1
- Magazine for spacer rings
2
- 6 bar compressed air connection
3
- Cover cap with pneumatic switch
4
- Pressing tool with drill inserted
5
- Spacer ring ready for pressing
1
2
3
4
5
