Acquiring a Panoramic, TMJ x2 or Sinus Image

5–4 ACQUIRING PANORAMIC IMAGES

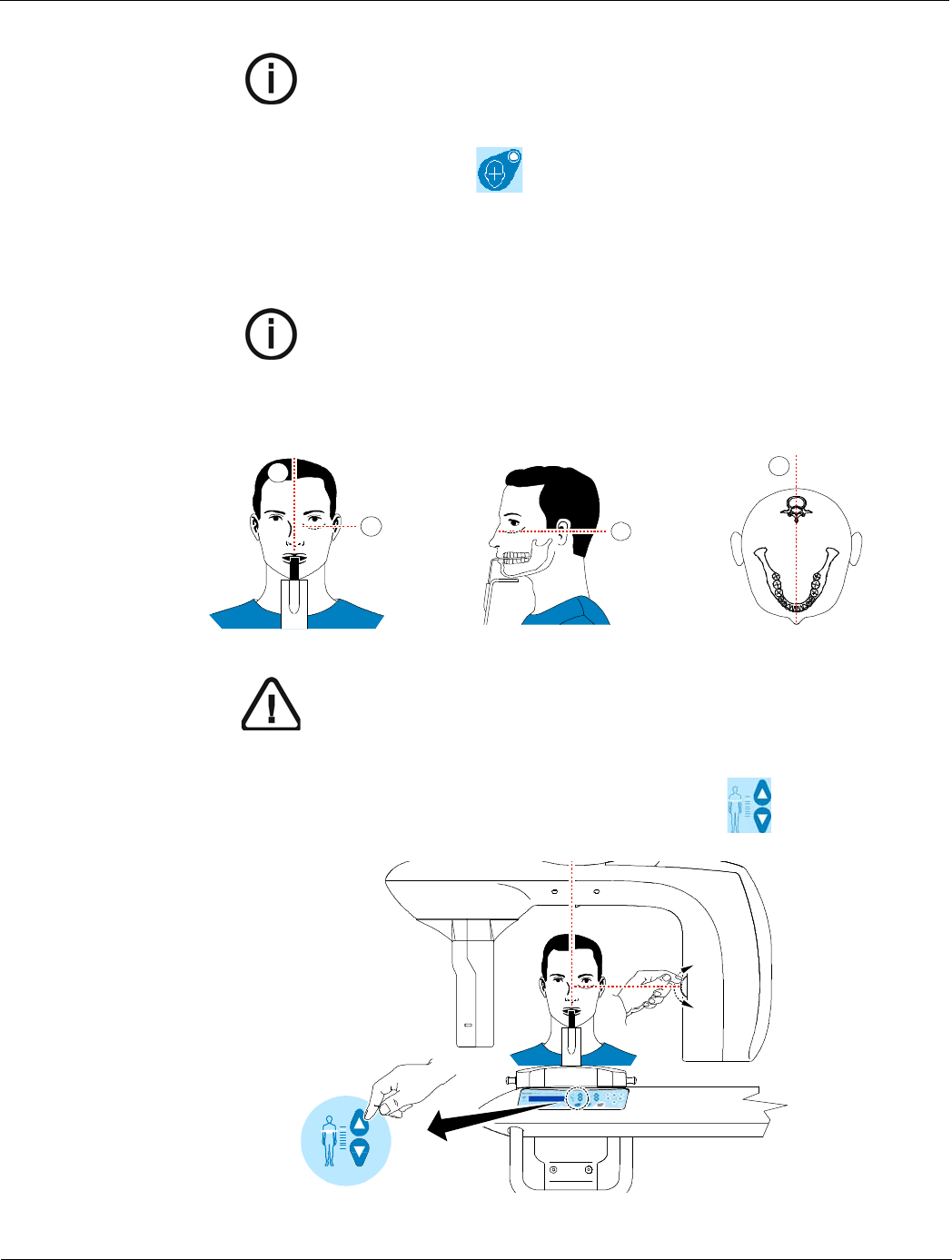

6. On the Control Panel, click to turn ON the 2 positioning laser beams:

 The mid-sagittal (1) positioning laser beam for a vertical alignment.

 The horizontal (2) positioning laser beam for a Frankfort plane alignment.

7. Correctly align the Frankfort and mid-sagittal planes using and the adjusting

thumb wheel.

NOTE

Correct posture reduces the shadow of the spinal column

transferred to the image.

NOTE

You can re-activate the laser positioning beams as needed. You

can press the same button to turn OFF the laser beams, or wait

60 seconds for the beams to turn OFF automatically.

IMPORTANT

The spinal column and the nose of the patient must be

aligned in a straight line (1).
