5-121 Network Setup
Sharp AR-C360P EFI Configuration Guide - 121
255.255.0.0 if the IP address starts with a number from 128
through 191
255.255.255.0 if the IP address starts with a number greater than
191
Note:Confirm the subnet mask setting with your network
administrator before proceeding. In some cases, the required
setting may be different from those listed.
If your TCP/IP network has a gateway and users outside the
gateway plan to print to the Fiery using TCP/IP, enter the gateway
address.
Note:The Fiery stores assigned IP addresses, even if you later
disable TCP/IP.
Note:If you must assign the Fiery IP address to another device,
first set the Fiery address to a null address.

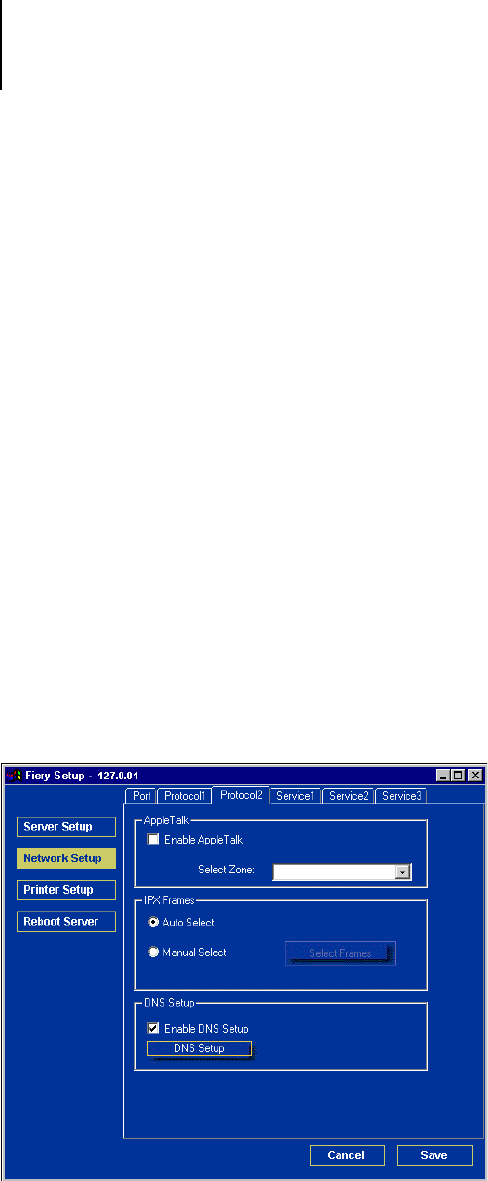

AppleTalk
The current AppleTalk zone is displayed in the Protocol2 tab.
