Printing Lists and Reports
155
7. Printing
Lists
♦ If Option Setting 4 (Auto Listing) is set to YES, a report will be
automatically printed out whenever information on 30 operations
has accumulated. (A report can still be printed on demand at any
time.)
♦ All information is erased after a report is printed out. If automatic
print-out is turned off and the report is not printed manually for 30
operations, the information on the oldest operation will be overwrit-
ten each time a new operation is performed.

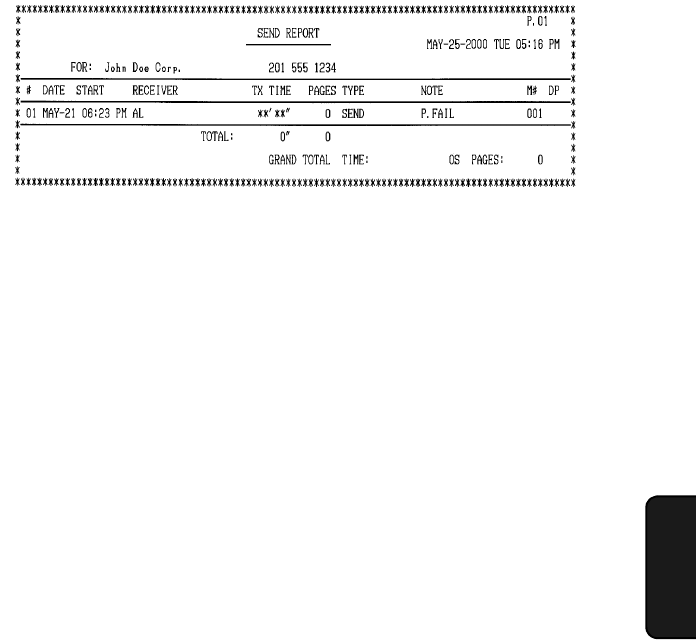

Explanation of headings
SENDER/
RECEIVER
The name or fax number of the other machine involved in
the transaction.
START
The time at which transmission/reception started.
TX/RX TIME
Total time taken for transmission/reception.
PAGES
Number of pages transmitted/received.
TYPE
CONF. TX - A confidential operation was performed.
RELAY TX - A relay operation was performed.
(T) - A timer operation was performed.
(D) - The document was sent directly from the feeder, not
from memory.
all-FO4700.book Page 155 Tuesday, November 28, 2000 2:07 PM
