The exhaust filter consists of an electrostatic HEPA Type filter. (EC-S5170) HEPA

Filter (EC-T5180 series)

The HEPA Type filter should be replaced at least every 10 months to maintain efficient

filtration. (EC-S5170)

HEPA Filter(EC-T5180 series) can be washed with running water.

Exhaust Filter

Case

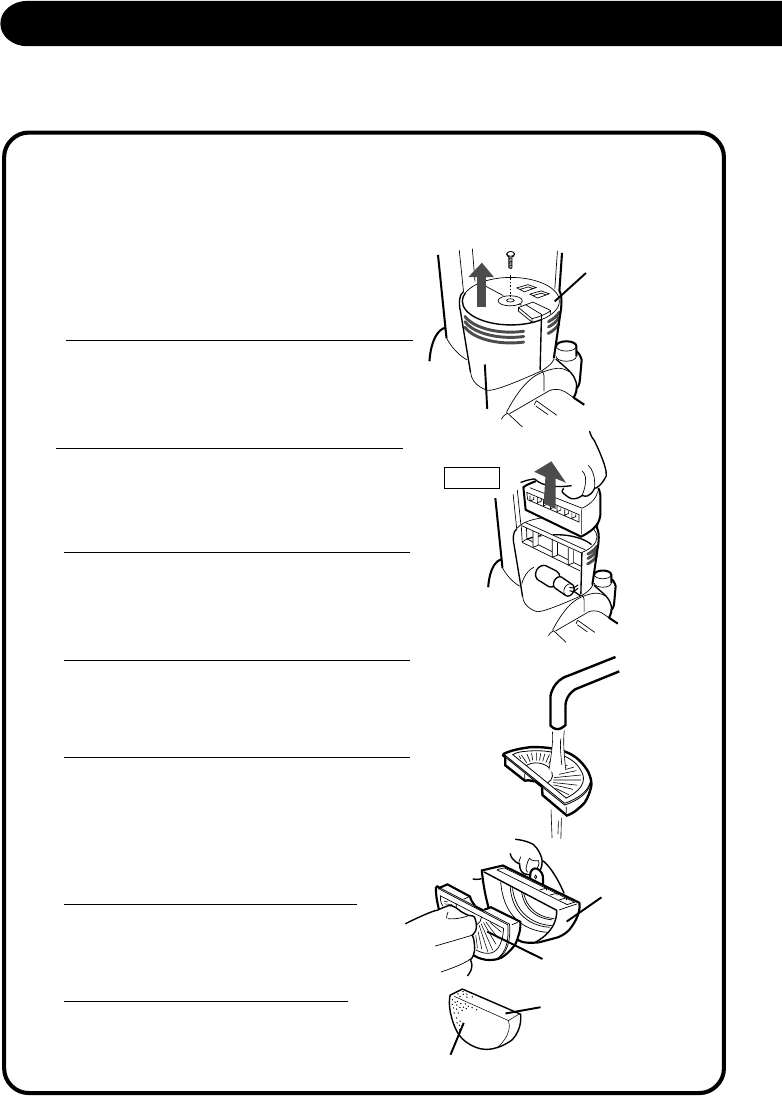

HOW TO MAINTAIN OR REPLACE THE EXHAUST FILTERS

Remove the dirt compartment.

Fig.37

REPLACEMENT INSTRUCTIONS

Unscrew the center screw. (Fig.37)

Lift the exhaust filter case.(Fig.38)

Lift the lamp cover. (Fig.37)

At the botton of the case HEPA type filter (EC-

S5170) or HEPA filter(EC-T5180) is placed.

Replace the filter as before and set the

filter case and lamp cover.

Secure the center screw.

Fig.38

Fig.39

Lamp cover

Filter case

HEPA filter

(EC-T5180 series)

HEPA Type Filter

(EC-S5170)

(Replace type)

Show Green Net Side

How to remove/set the filter.

Fig.40

Lift

HEPA Filter (EC-T5180 series) can be washed

with running water.

After washing it, please dry completely in the air.

Do not use hair dryer or other heating machine.
