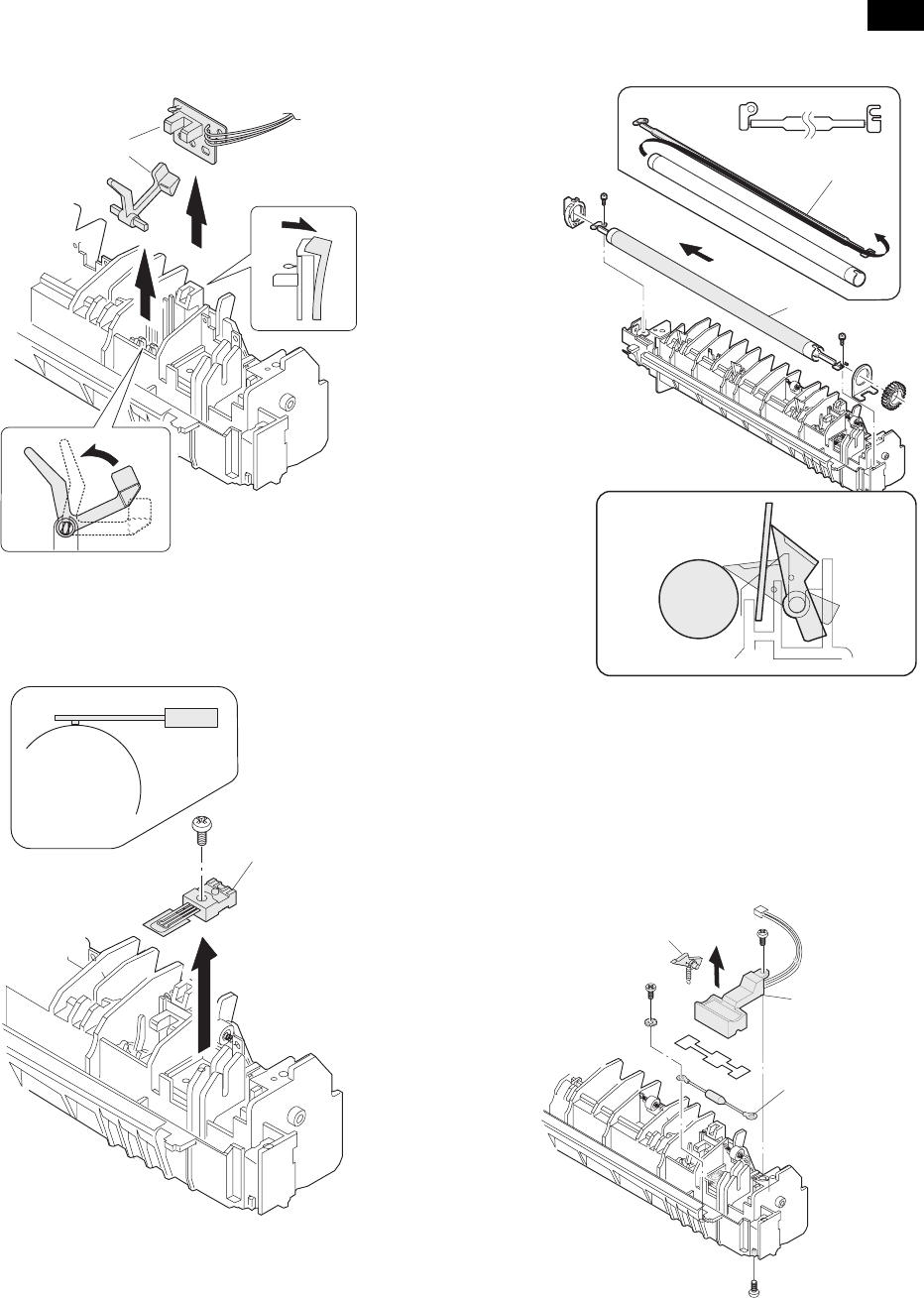

(2) Remove the paper exit detector (S007/Ua001/P005).
#1. Fit the boss direction and remove.
∗ Troubles caused by improper work
1) Paper jam
(3) Remove the screw, and remove the fusing temperature sensor
(S007/Ua001/P006).
∗ Note for assembly
Be careful not to mistake the installing direction of the fusing
temperature sensor.
∗ Cleaning
Use absolute alcohol to clean the contact surface of the heat
roller.
∗ Troubles caused by improper work
1) Fusing abnormality
2) Fusing temperature error (H2-00, H3-00, H4-00)
(4) Remove the screw, and remove the heat roller (S007/Ua001/
P007) and the heater lamp (S007/Ua001/P008).
∗ Note for assembly
Insert a piece of paper between the separation pawl and the heat
roller to keep the separation pawl open in order to protect the heat
roller from damage.
∗ Cleaning
Use absolute alcohol to clean the separation pawl.
(5) Remove the separation pawl (S007/Ua001/P009).
(6) Remove the screw, and remove the temperature fuse A (S007/
Ua001/P010) and the temperature fuse B (S007/Ua001/ P011).
∗ Cleaning
Use absolute alcohol to clean the contact section of the tempera-
ture fuse A which is in contact with the heat roller.
Use absolute alcohol to clean the separation pawl.
∗ Troubles caused by improper work
1) paper jam
S007/Ua001/P005
#1
S007/Ua001/P006/CLN
S007/Ua001/P008
S007/Ua001/P007/CLN
S007/Ua001/P011
S007/Ua001/P010/CLN
S007/Ua001/P007/CLN
FO-3800M
9 – 28
