IBX-530B-270 Embedded System

Page 38

4.2.8 DIN Mounting (Optional)

To mount the IBX-530B-N270 embedded system onto a DIN rail, please follow the steps

below.

Step 1: Attach the DIN rail mounting bracket to the bottom panel of the embedded

system. Secure the bracket to the embedded system with the supplied retention

screws (

Figure 4-8).

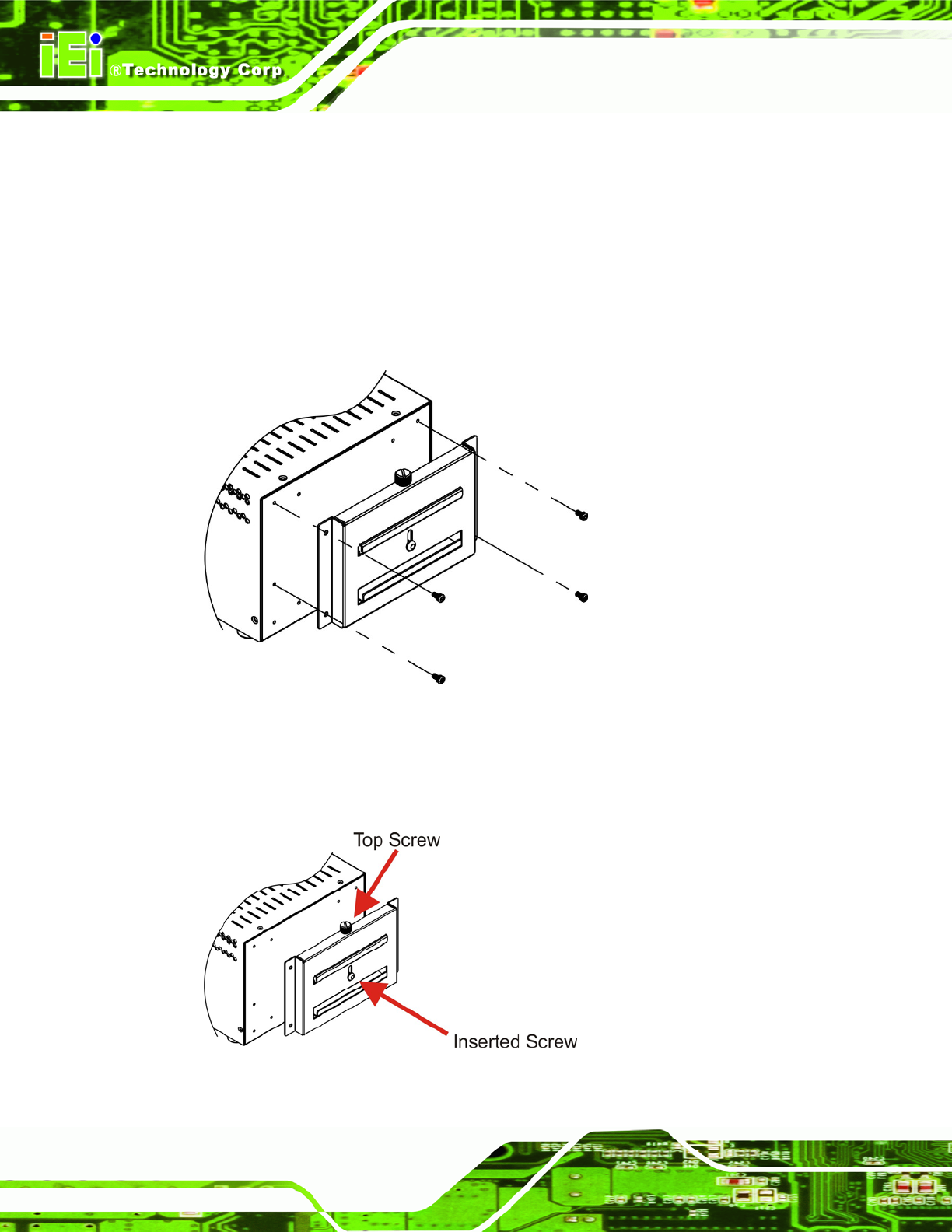

Figure 4-8: DIN Rail Mounting Bracket

Step 2: Make sure the inserted screw in the center of the bracket is at the lowest

position of the elongated hole (

Figure 4-9).

Figure 4-9: Screw Locations
