SPEC No.

LC99213A

MODEL No.

LM10V332

PAGE

15

Measuring Spot Size : φ10 mm

θx : Angle from “normal” to viewing surface rotated about the horizontal axis.

θy : Angle from “normal” to viewing surface rotated about the vertical axis.

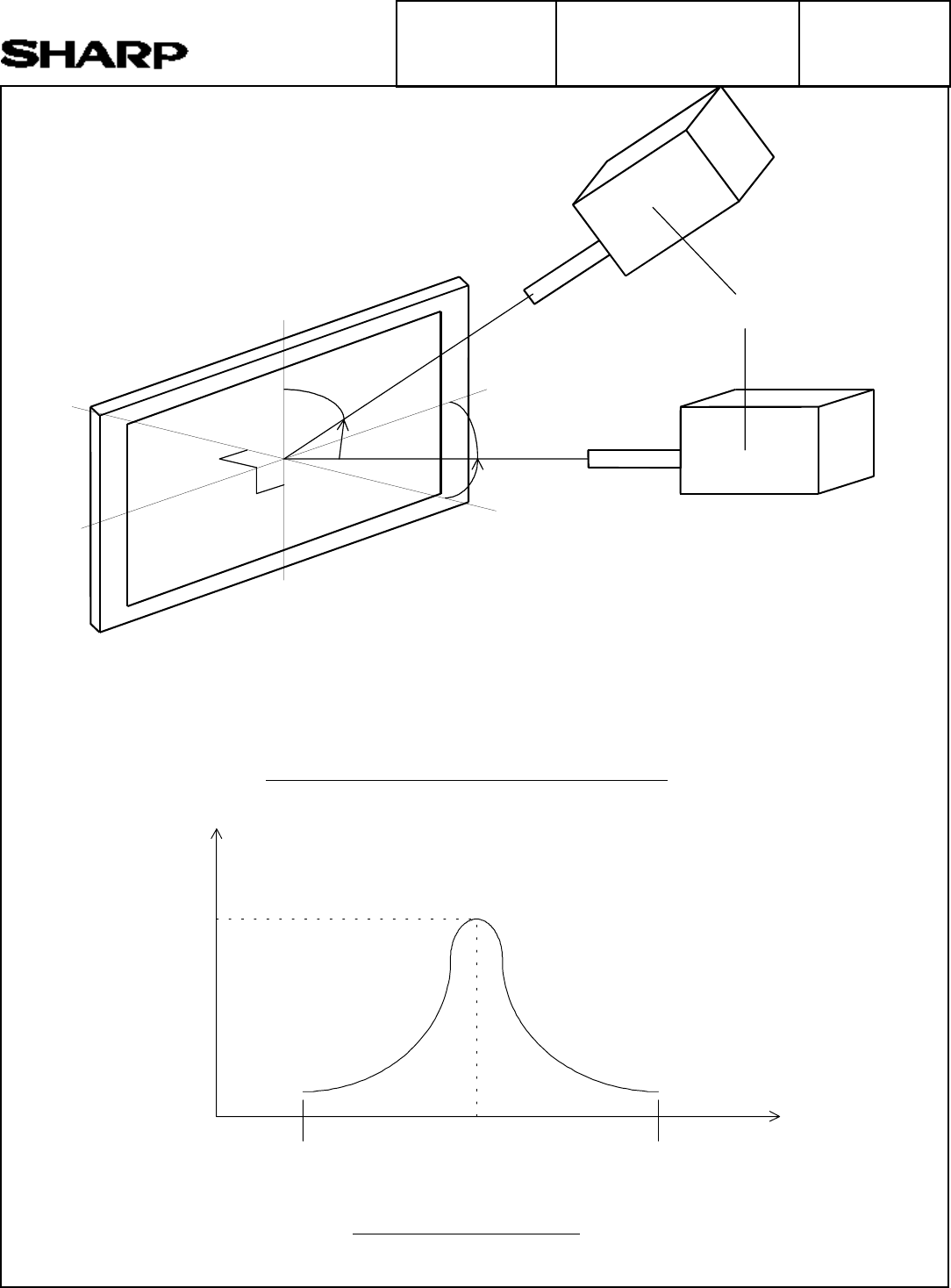

Fig.5 Optical Characteristics Test Method Ⅰ

Fig.6 Definition of Vmax

+θy

+θy -θx

-θx

normal

-θy

+θx

TOPCON BM-7

Measuring

Field: 2 ﾟ

Comax.

Vmax.

Vcon-Vss (V)

1 2 ... 14 15 16 17 18 19 20 21 22 23 24 ... 30 31
