Planning and Engineering Guide, Release TR5.0.x/TN6.0.x 5

Traverse Rack

Configuration

The Traverse 1600 and Traverse 600 shelves install in either a standard 19-in (483 mm)

or 23-in (584 mm) wide relay rack. The Traverse 1600 and Traverse 600 shelves

requires mounting brackets for installing in a 23-in (584 mm) wide rack. The Traverse

2000 shelf installs only in a standard 23-in (584 mm) wide relay rack.

To provide proper air flow, 3/8-in (9.5 mm) of space is required between the PDAP and

the first (top most) Traverse shelf assembly.

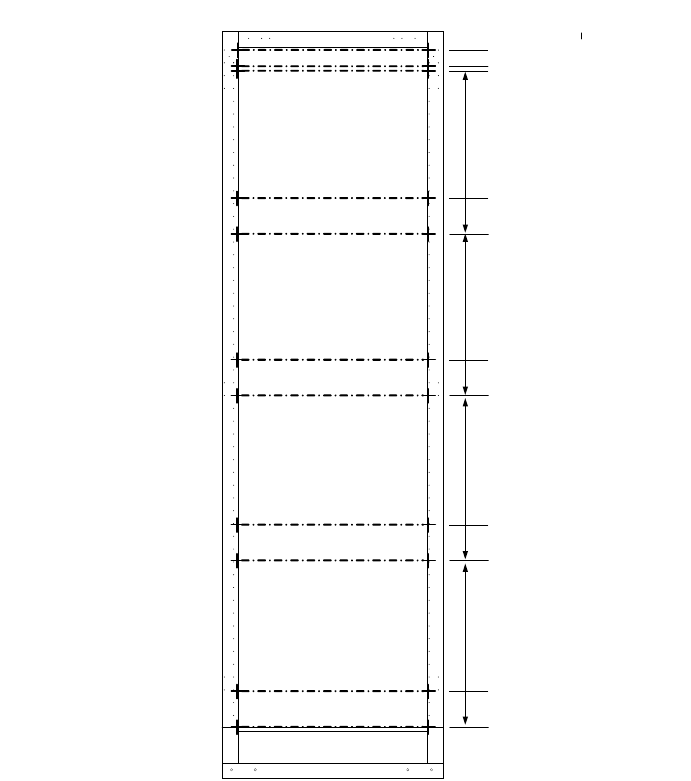

Figure 2 Traverse Mounting Heights in a 7-foot (2133.6 mm) Relay Rack

Notes:

1. Pre-install shelf mounting

screws in locations shown to

take advantage of keyhole slots

to aid installation.

2. Leave about 1/4 in (.635 mm)

clearance between rack and

head of mounting screws .

3. This configuration requires

approximately 80.5 rack units of

usable space in the rack . [1

Rack Unit = 1.75 in (4.446 cm).]

4. The PDAP-4S must be

placed in the top of the rack .

The PDAP-4S uses the first set

of mounting holes for

installation. The top most 20-

slot shelf assembly goes directly

under the PDAP -4S. There

should be a slight gap between

the two units of about 3/8 in (1

cm).

5. The fan tray with integrated

air ramp mounts directly under

the 20-slot shelf assembly.

There should be no gap

between one shelf assembly

and the fan tray assembly .

18.75 in (46.36 cm) from top

of Shelf #2 to bottom of fan

tray for Shelf #2

82.00 in (208.5 cm) PDAP-

4S (top)

Fan Tray with integrated air

ramp 61.125 in (156.69 cm)

(bottom )

18.75 in (46.36 cm) from top

of Shelf #1 to bottom of fan

tray for Shelf #1

80.25 in (204.05 cm) PDAP-4S

bottom )

Fan Tray with integrated air

ramp 42.375 in (110 .33 cm)

(bottom)

79.875 in (203.05 cm ) inches for

Shelf #1 (top)

18.75 in (46.36 cm) from top of

Shelf #3 to bottom of fan tray

for Shelf #3

Fan Tray with integrated air

ramp 23.625 in (63.97 cm )

(bottom)

18.75 in (46.36 cm) from top of

Shelf #4 to bottom of fan tray

for Shelf #4

Fan Tray with integrated air

ramp 4.745 in (17.61 cm)

(bottom )

1 2 3 4 5 6 7 8 9 10 11 12 ... 75 76
