300 SERIES MAN HOLE DIGGER

FORM GOM12070702, VERSION 1.2

53

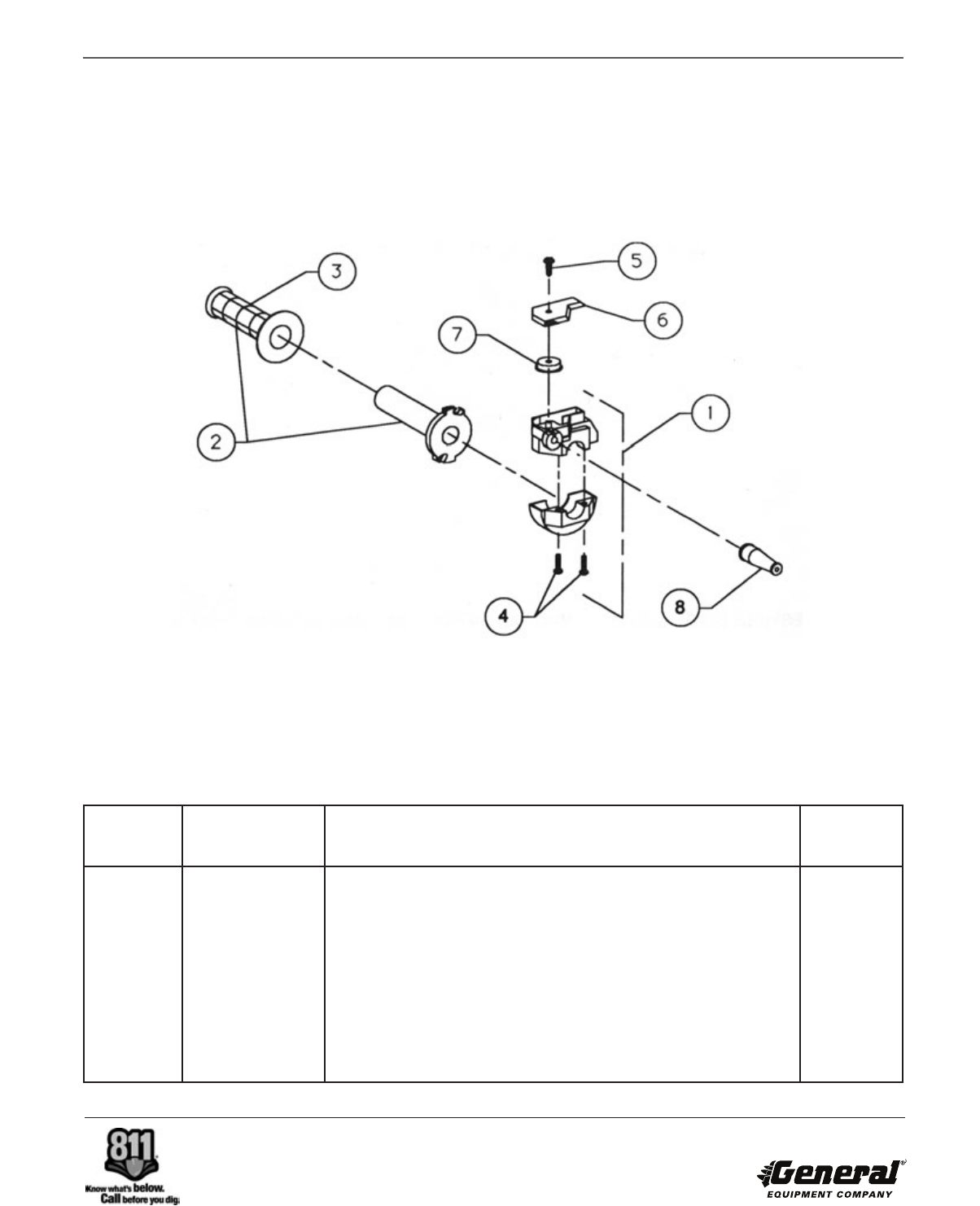

Replacement Parts Diagram

Plastic Series 314

Magura® Throttle Control Assembly

300 Series Hole Diggers

Reference

Number

PART

NUMBER

DESCRIPTION QUANTITY

1

2

3

4

5

6

7

8

310-0030-010-A

310-0030-020-A

310-0020-030

310-0030-040

310-0030-050

310-0030-060

310-0030-070

310-0020-080

Body Assembly, (Includes P/N 310-0030-040, Qty 2)

Tube, Throttle (Includes P/N 310-0020-030)

Grip, Handle

Screw, Pan Head, M5 x 20

Screw, Self Tapping

Cover, Top

Sheave, Roller

Boot, Rubber

1

1

1

2

1

1

1

1

Replacement Parts Diagram

Plastic Series 314

Magura® Throttle Control Assembly

300 Series Hole Diggers
