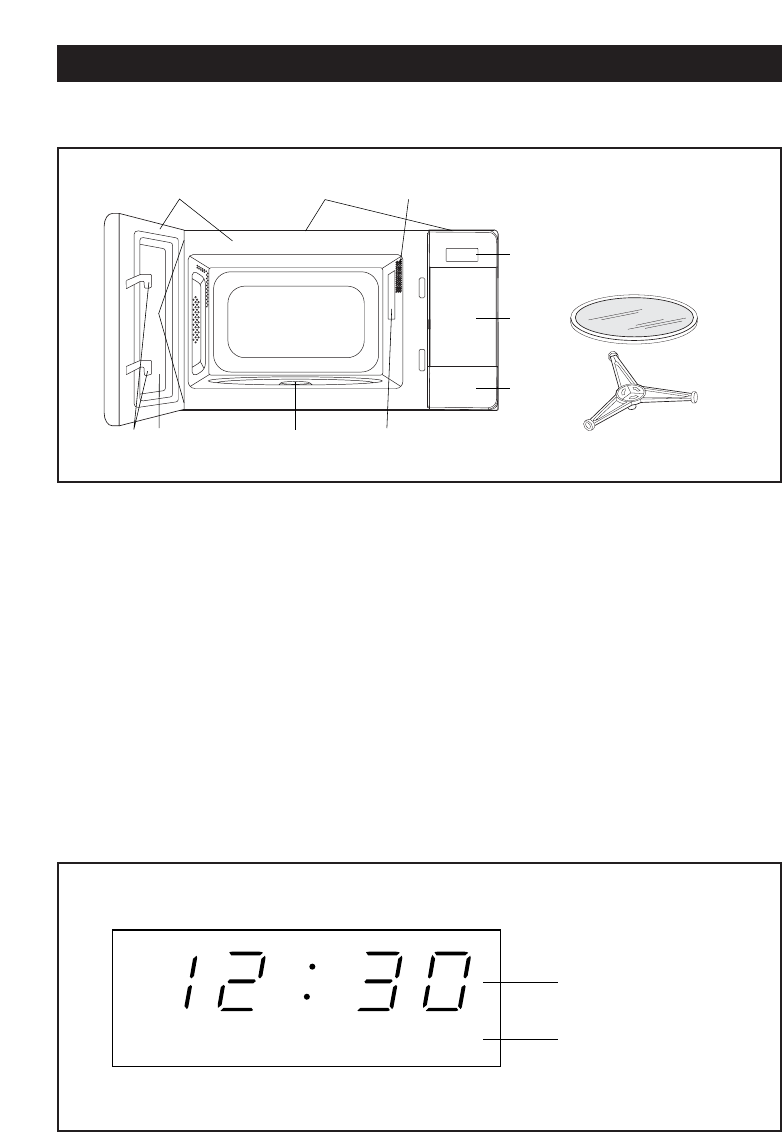

1 Door opening button

Push to open door.

2 Oven door with see-through window

3 Safety door latches

The oven will not operate unless the

door is securely closed.

4 Door hinges

5 Door seals and sealing surfaces

6 Turntable motor shaft

7 Removable turntable support

Carefully place the turntable support in

the center of the oven floor.

8 Removable turntable

Place the turntable on the turntable

support securely. The turntable will

rotate clockwise or counterclockwise.

Only remove for cleaning.

9 Ventilation openings (Rear)

10 Oven light

It will light when oven is operating.

11 Waveguide cover: DO NOT REMOVE.

12 Auto-Touch control panel

13 Time display: 99 minutes, 99 seconds

MICROWAVE OVEN PARTS

DISPLAY

DEF. LBS. QTY.

CHECK

ON

Time display

Indicators

PART NAMES
