4 Replacement Procedures 4.5 HDD
4-16 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
4.5 HDD
Removing the HDD
The following describes the procedure for removing an HDD (See Figure 4-6 to 4-8).
CAUTION: Take care not to press on the top or bottom of the HDD. Pressure may
cause data loss or damage to the device.
1. Turn the computer upside down.
2. Remove the following screw fixing the HDD slot cover and raise the cover to
remove.
? M2.5x6B THIN BIND screw x1

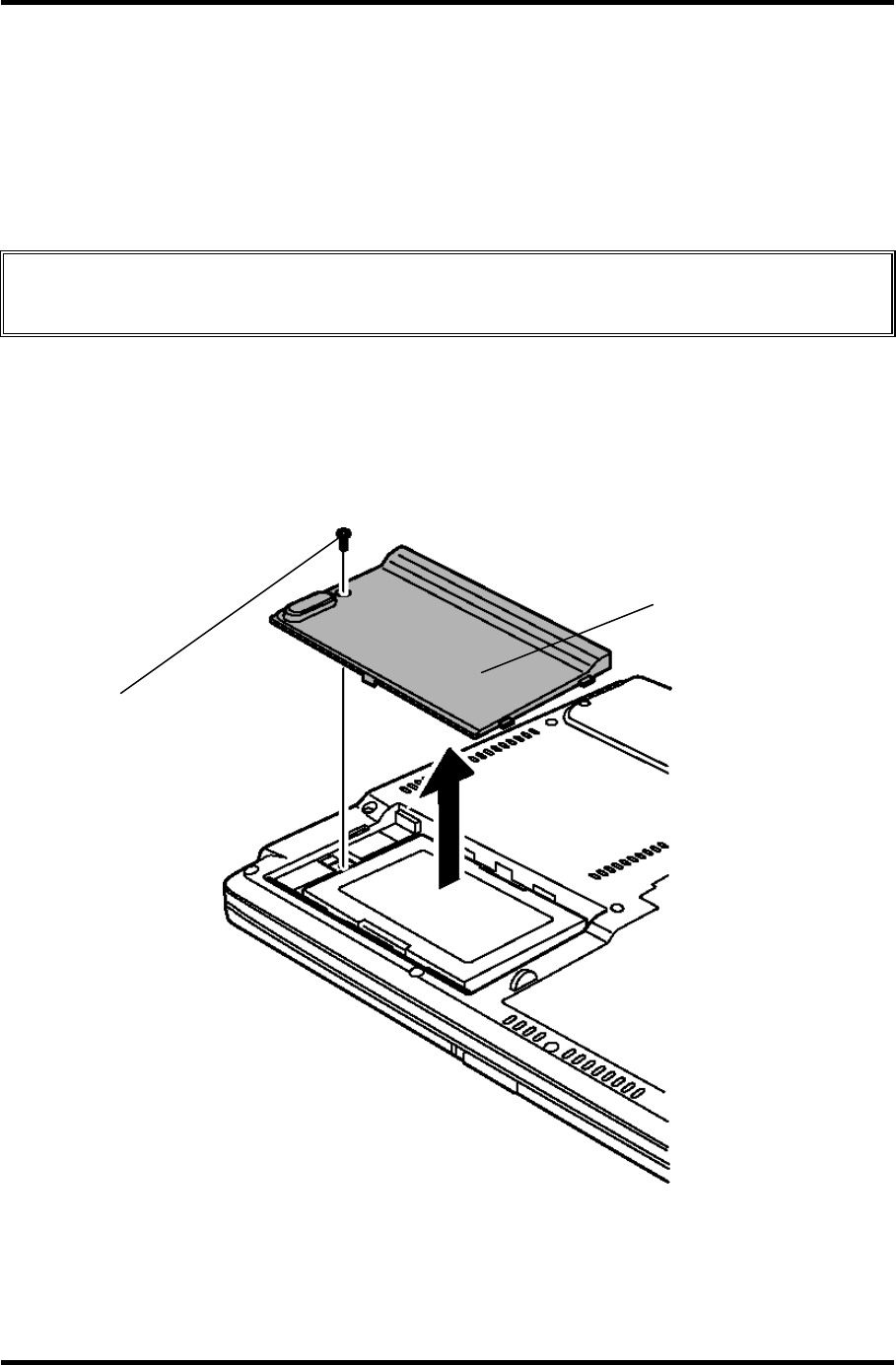

Figure 4-6 Removing HDD Slot Cover
M2.5x6B THIN BIND
HDD Slot Cover
