INSTALLING THE PRINTER DRIVER / PC-FAX DRIVER

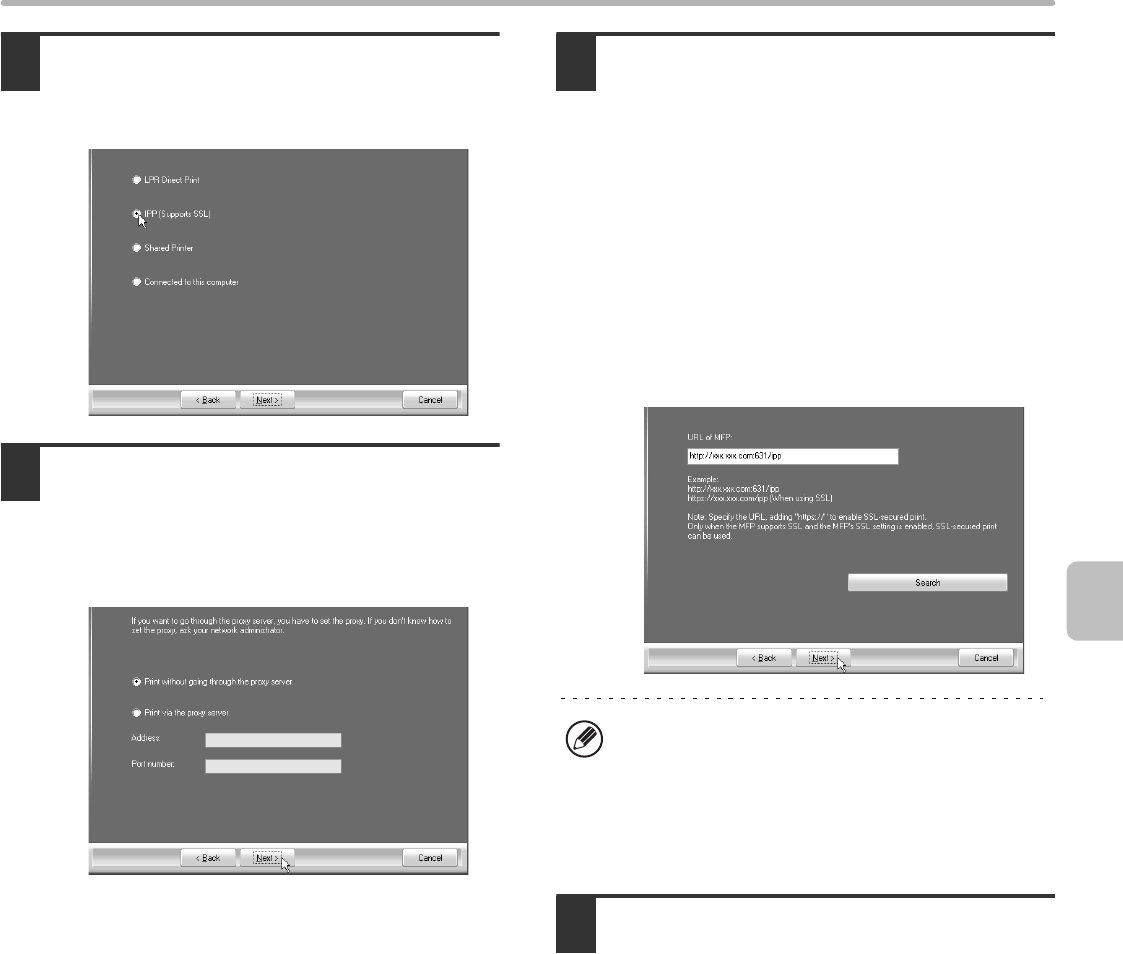

When you are asked how the printer is

connected, select [IPP] and click the

[Next] button.

If a proxy server is used, specify the

proxy server and click the [Next]

button.

To specify a proxy server, select [Print via the proxy

server] and then enter the [Address] and [Port number].

Enter the machine's URL and click the

[Next] button.

Enter the URL in the following format:

Normal format:

http://<the machine's domain name or IP address>:631*

/ipp

*1 Normally "631" should be entered for the port number.

If the IPP port number has been changed on the

machine, enter the new port number.

When SSL is used:

https://< the machine's domain name or IP address>:<port number*

>/ipp

*2 Normally the port number and the colon ":"

immediately preceding the port number can be

omitted. If the IPP port number for SSL has been

changed on the machine, enter the new port number.

When the model selection window

appears, select the model name of your

machine and click the [Next] button.

If your computer and the machine are connected to

the same local area network, you can click the

[Search] button to search for the machine. The

machine's URL will appear. Select the URL and click

the [OK] button. You will return to the above screen

and the machine's URL will be automatically entered.
