AR-BC260 TROUBLESHOOTING 11 - 1

[11] TROUBLESHOOTING

[MAIN UNIT]

1. Outline

In case of a trouble in the machine, or when a consumable part

has nearly reached or already reach the lifetime, the machine

detects it, analyze it, and displays it on the display section and

notifies the user and the serviceman by a voice message.

The user and the serviceman are bale to perform the proper coun-

termeasures according to a voice message. In case of a trouble,

the machine is stopped to restrict damage to a minimum in addi-

tion to a voice message.

2. Functions and purposes

1) Assures safety. (The machine is stopped when a trouble is

detected.)

2) Restricts damage to a minimum. (The machine is stopped

when a trouble is detected.)

3) By displaying the trouble content, the trouble position can be

identified immediately and accurately. (An accurate repair

work can be performed, improving the repair efficiency.)

4) By providing a preparatory warning when the lifetime of a con-

sumable part is nearly reached, arrangement of the consum-

able part can be made in advance. (Stopping the machine by

exhaustion of a consumable part is avoidable.)

3. Kinds of self diagnostic messages

The self diagnostic messages are classified as follows:

4. Self diagnostic operation

A. Self diagnostic operation and work flow

The machine always monitors its own status.

When the machine detects a trouble, it stops operations and dis-

plays a trouble message.

A warning message is provided mainly when a consumable part is

nearly or completely exhausted.

When a warning message is provided, the machine may be

stopped or may not be stopped depending on the message.

The trouble and warning messages are indicated with the LCD

and lamps.

Some trouble messages may be automatically cleared after

removing the trouble, and some must be cleared with the simula-

tion.

Some warning messages of consumable parts are automatically

cleared when the trouble is repaired. Some other warning mes-

sages must be cleared by a simulation.

Class 1 User Troubles and warning messages (paper

jam, consumable part life expiration, etc.)

which can be processed by the user.

Service Troubles and warning messages (motor

trouble, maintenance, etc.) which can be

processed only by a serviceman.

Other —

Class 2 Warning Warning messages (consumable part life

expiration, etc.) for the user, which are not

directly related to any machine trouble.

Trouble Related to a machine trouble. The

machine is stopped.

Other —

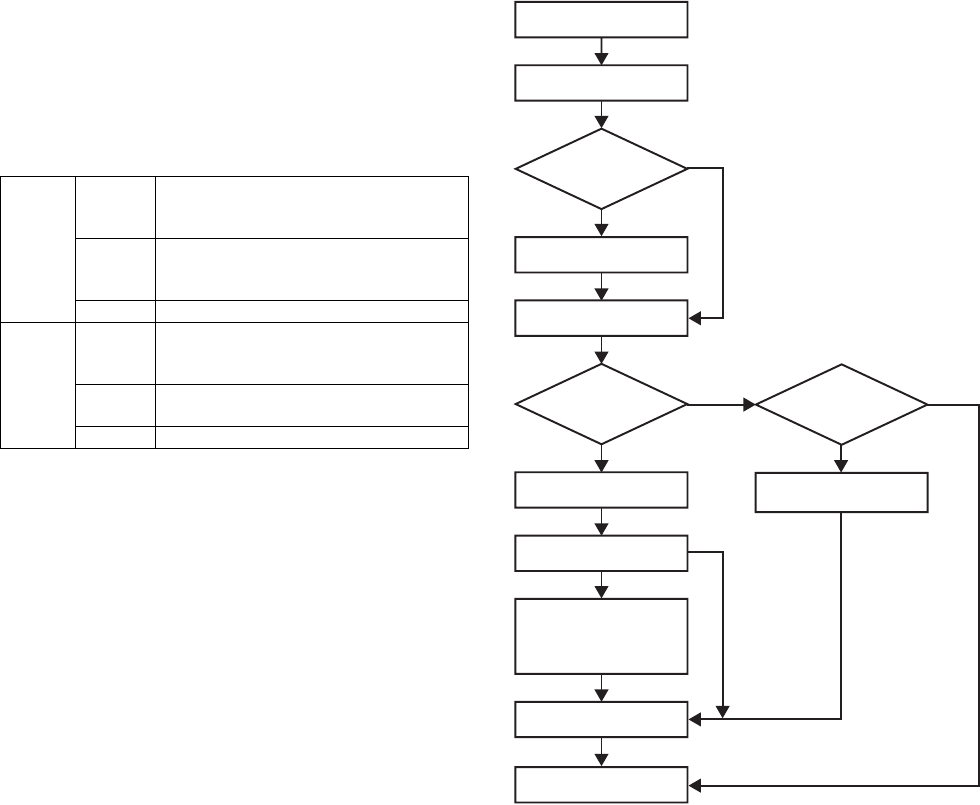

Troubleshoot the cause.

YES

Detects/analyzes

the content.

Trouble/Warning

Warning

Trouble

The machine is stopped.

The content is displayed.

Trouble/Warning

Warning

A consumable

part has reached

its lifetime.

Trouble

Replace or supply

the consumable part.

Cancel the self-

diagnostic message with

the diagnostics

(test commands).

Reset

Standby state

Monitors the machine

conditions.

Repair

SHARP TROUBLE & ERROR CODES

AR-BC260

1 2 3 4 5 6 ... 27 28

AR-BC260 1
6. Details 3

Indice de contenidos

Pagina 1 - AR-BC260

AR-BC260 TROUBLESHOOTING 11 - 1[11] TROUBLESHOOTING[MAIN UNIT]1. OutlineIn case of a trouble in the machine, or when a consumable parthas

Pagina 2

AR-BC260 TROUBLESHOOTING 11 - 10Main codeSub codeTitleSaddle finisher punch power disconnection troubleF1 40 Display Lamp/MessagePhenomenon Detail T

Pagina 3 - 6. Details

AR-BC260 TROUBLESHOOTING 11 - 11Main codeSub codeTitleAutomatic adjustment trouble of the paper sensor in the sorter binF1 91 Display Lamp/MessagePh

Pagina 4

AR-BC260 TROUBLESHOOTING 11 - 12Main codeSub codeTitleToner empty sensor abnormality (Yellow)F2 43 Display Lamp/MessagePhenomenon Detail Toner empty

Pagina 5

AR-BC260 TROUBLESHOOTING 11 - 13Main codeSub codeTitleDeveloping unit improper cartridge detection (Black)F2 70 Display Lamp/MessagePhenomenon Detai

Pagina 6

AR-BC260 TROUBLESHOOTING 11 - 14Main codeSub codeTitleDeveloping unit CRUM trouble (Yellow)F2 77 Display Lamp/MessagePhenomenon Detail CRUM read/wri

Pagina 7

AR-BC260 TROUBLESHOOTING 11 - 15F2 81 Case 1 Cause When "Error" occurs in the gain adjustment of SIM 44-2:1. Disconnection of the harness

Pagina 8

AR-BC260 TROUBLESHOOTING 11 - 16Main codeSub codeTitleHalf-tone process control 2nd patch error (Black)F2 84 Display Lamp/MessagePhenomenon Detail 2

Pagina 9

AR-BC260 TROUBLESHOOTING 11 - 17Main codeSub codeTitleHalf-tone process control 2nd patch error (Magenta)F2 86 Display Lamp/MessagePhenomenon Detail

Pagina 10

AR-BC260 TROUBLESHOOTING 11 - 18Main codeSub codeTitleHalf-tone process limit errorF2 90 Display Lamp/MessagePhenomenon Detail The difference betwee

Pagina 11

AR-BC260 TROUBLESHOOTING 11 - 19Main codeSub codeTitleFAX MODEM operation abnormalityF6 04 Display Lamp/MessagePhenomenon Detail FAX PWB MODEM chip

Pagina 12

AR-BC260 TROUBLESHOOTING 11 - 25. ListMain codeSub codeContentA0 00 PCU PWB errorC2 10 Transfer charger trouble (Black)E7 01 Image data memory troub

Pagina 13

AR-BC260 TROUBLESHOOTING 11 - 20Main codeSub codeTitleICU-PRT communication trouble (ICU detection)F9 00 Display Lamp/MessagePhenomenon Detail Commu

Pagina 14

AR-BC260 TROUBLESHOOTING 11 - 21Main codeSub codeTitleFusing section high temperature trouble (THS1)H3 00 Display Lamp/MessagePhenomenon Detail The

Pagina 15

AR-BC260 TROUBLESHOOTING 11 - 22H4 01 Case 2 Cause The heater lamp keeps ON with SIM 5-2.Heater lamp trouble, thermostat trouble, interlock switch t

Pagina 16

AR-BC260 TROUBLESHOOTING 11 - 23Main codeSub codeTitleTransfer belt motor troubleL4 07 Display Lamp/MessagePhenomenon Detail 1. Before driving the d

Pagina 17

AR-BC260 TROUBLESHOOTING 11 - 24Main codeSub codeTitleMain power switch abnormality detectionL8 04 Display Lamp/MessagePhenomenon Detail Though the

Pagina 18

AR-BC260 TROUBLESHOOTING 11 - 25Main codeSub codeTitleEEPROM check sum error (ICU detection)U2 11 Display Lamp/MessagePhenomenon Detail EEPROM (ICU)

Pagina 19

AR-BC260 TROUBLESHOOTING 11 - 26Main codeSub codeTitleEEPROM read/write error (PCU)U2 90 Display Lamp/MessagePhenomenon Detail EEPROM version errorE

Pagina 20

AR-BC260 TROUBLESHOOTING 11 - 27Main codeSub codeTitleDesk tray 1 lift motor troubleU6 01 Display Lamp/MessagePhenomenon Detail DLUD1 does not turn

Pagina 21

AR-BC260 TROUBLESHOOTING 11 - 28U6 20 Case 1 Cause Improper connection or disconnection of the connector and the harness.Check & RemedyCheck the

Pagina 22

AR-BC260 TROUBLESHOOTING 11 - 36. DetailsL3 00 Mirror return troubleL4 02 Paper feed motor lock trouble06 Transfer belt lift motor trouble07 Transfe

Pagina 23

AR-BC260 TROUBLESHOOTING 11 - 4Main codeSub codeTitleShading trouble (Black correction)E7 10 Display Lamp/MessagePhenomenon Detail CCD black reading

Pagina 24

AR-BC260 TROUBLESHOOTING 11 - 5Main codeSub codeTitleLED controller output trouble (Black)E7 24 Display Lamp/MessagePhenomenon Detail When printing,

Pagina 25

AR-BC260 TROUBLESHOOTING 11 - 6Main codeSub codeTitleColor correction data write abnormalityE7 40 Display Lamp/MessagePhenomenon Detail Data write e

Pagina 26

AR-BC260 TROUBLESHOOTING 11 - 7Main codeSub codeTitleSaddle finisher transport motor trouble (Saddle finisher detection)F1 02 Display Lamp/MessagePh

Pagina 27

AR-BC260 TROUBLESHOOTING 11 - 8Main codeSub codeTitleSaddle finisher front alignment motor abnormality (Saddle finisher detection)F1 19 Display Lamp

Pagina 28

AR-BC260 TROUBLESHOOTING 11 - 9Main codeSub codeTitleSaddle finisher punch motor troubleF1 34 Display Lamp/MessagePhenomenon Detail Punch motor oper
