AR-5316 DISASSEMBLY AND ASSEMBLY 11-2

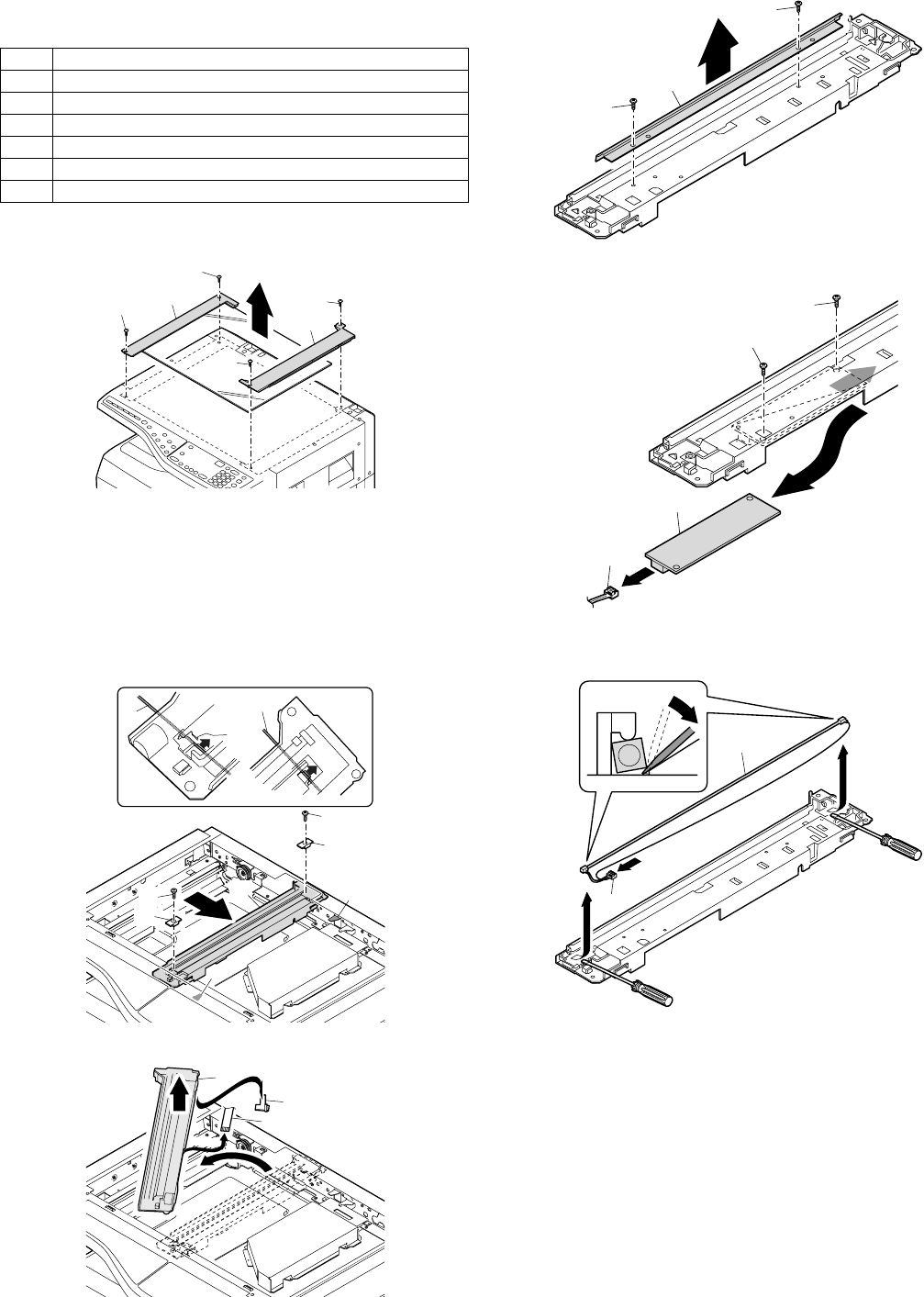

2.Optical section

Note: When disassembling or assembling the optical unit, be careful not

to touch the mirror and the reflector.

A.Table glass

B.Copy lamp unit

Disassembly: Be sure to put No. 2/3 mirror unit to the positioning plate

(A).

Assembly: Put the notched surface of wire holder (3) downward,

tighten temporarily, and install.

Adjustment: Main scanning direction distortion balance adjustment

C.Inverter PWB for copy lamp

D.Copy lamp

No. Content

A Table glass

B Copy lamp unit

C Inverter PWB for copy lamp

DCopy lamp

E Lens unit

FWire

(1)

(2)

(4)

(3)

(4)

(1)

(A)

(2)

(3)

(2)

(1)

(2)

(3)

(1)

(2)

(1)

(2)

(3)

(1)

(2)
