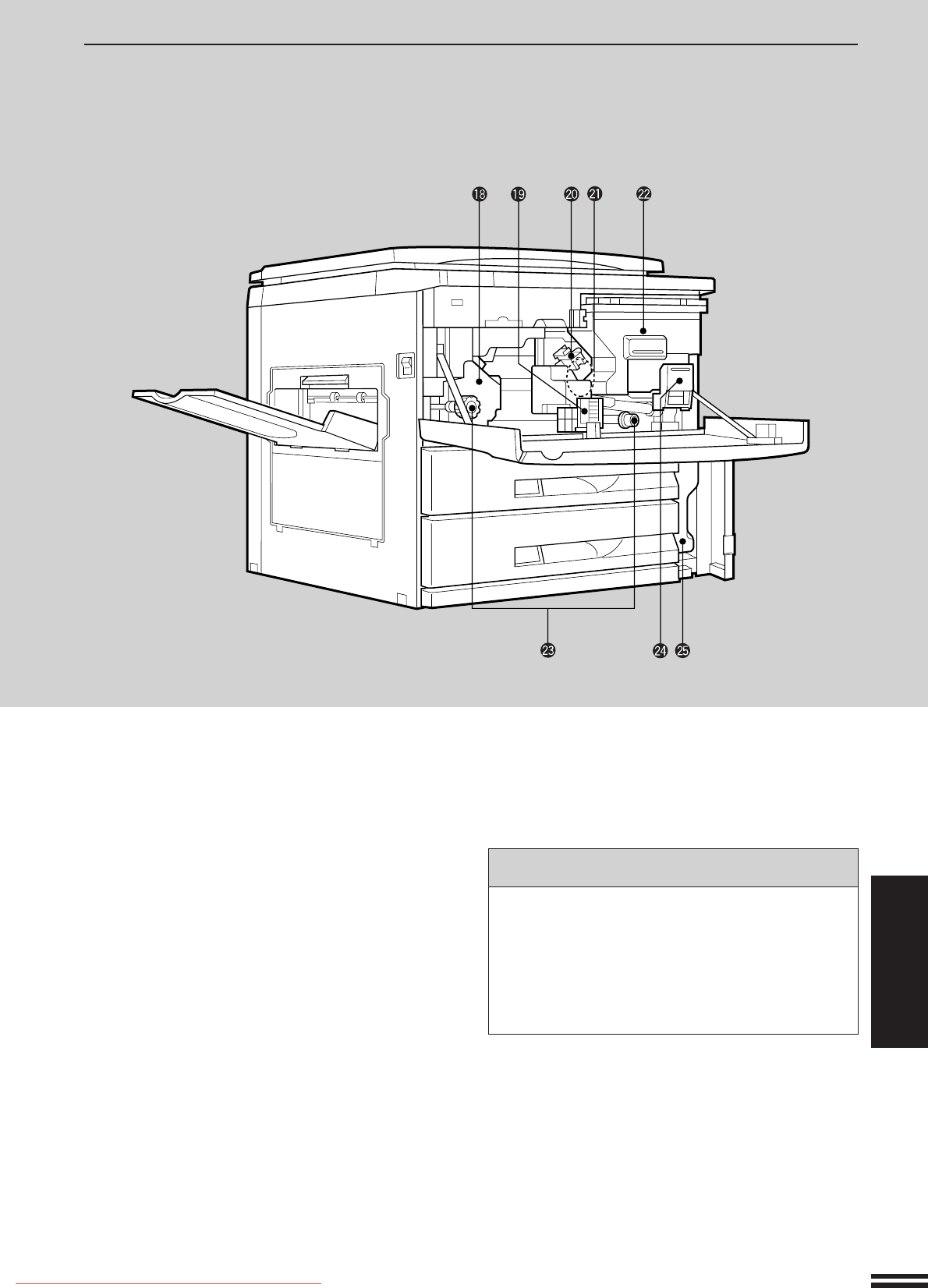

PART NAMES AND FUNCTIONS

Interior

Part names and functions

!8 Fusing unit

The fusing unit is hot. Exercise care in this area.

!9 Transport lever

Turn to open the transport section.

@0 Corona unit

The unit is used to charge the photoconductive

drum.

@1 Photoconductive drum

Copy images are formed on the photoconductive

drum.

@2 Toner hopper

Contains toner.

@3 Roller rotating knobs

Turn to remove misfed paper.

@4 Toner hopper lock lever

Pull down to release the toner hopper.

@5 Toner collecting container

Used toner is collected here. Replace when a

message appears in the display indicating the

need to do so.

Accessories

Inner cassette

(installed in the lower paper tray) ................... 1

Exit tray .......................................................... 1

Operation manual .......................................... 1

Document tray* .............................................. 1

Toner collecting containers

(including 1 pre-installed at the factory) .........4

*Not included in some areas.
